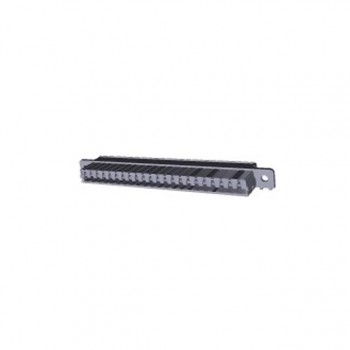

5-640866-0
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN EDGE SGL FEMALE 20POS 0.156
- CategoryCard Edge Connectors - Edgeboard Connectors
- Datasheet 5-640866-0 Datasheet
-
ECAD Model
- Share
In Stock: 198
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:MTA-156
- Package:Bulk
- Part Status:Active
- Card Type:Non Specified - Single Edge
- Gender:Female
- Number of Positions/Bay/Row:20
- Number of Positions:20
- Card Thickness:0.062" (1.57mm)
- Number of Rows:1
- Pitch:0.156" (3.96mm)
- Read Out:Single
- Features:-
- Mounting Type:Panel Mount
- Termination:IDC
- Contact Material:Phosphor Bronze
- Contact Finish:Tin
- Contact Finish Thickness:80.0µin (2.03µm)
- Contact Type:-
- Color:Red
- Flange Feature:Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
- Operating Temperature:-55°C ~ 105°C
