HQCEWA681JAT6A
Elco (AVX)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP CER 680PF 2.5KV NP0 3838
- CategoryCeramic Capacitors
- Datasheet HQCEWA681JAT6A Datasheet
-
ECAD Model
- Share
In Stock: 216
Can ship immediately
Pricing:
- 1$37.52
- 10$35.54141
- 100$28.63039
Quote It
Technical Details
- Series:Hi-Q®
- Package:Tray
- Part Status:Obsolete
- Capacitance:680 pF
- Tolerance:±5%
- Voltage - Rated:2500V (2.5kV)
- Temperature Coefficient:C0G, NP0
- Operating Temperature:-55°C ~ 125°C
- Features:High Q, Low Loss, Ultra Low ESR, High Voltage
- Ratings:-
- Applications:RF, Microwave, High Frequency
- Failure Rate:-
- Mounting Type:Surface Mount, MLCC
- Package / Case:3838 (9797 Metric)
- Size / Dimension:0.380" L x 0.380" W (9.65mm x 9.65mm)
- Height - Seated (Max):-
- Thickness (Max):0.170" (4.32mm)
- Lead Spacing:-
- Lead Style:-
Related Products
CAP CER 680PF 50V C0G/NP0 1210
C1210H681F5GAFT0507130 Datasheet- 1: $53.64000
- 50: $48.95196
- 100: $44.87256
CAP CER 0.01UF 50V X7R 0402
- 1: $0.00240
CAP CER 0.01UF 10V X7R 0402
- 1: $0.00240
CAP CER 0.01UF 16V X7R 0402
- 1: $0.00240
CAP CER 0.01UF 25V X7R 0402
- 1: $0.00240
CAP CER 13PF 50V C0G/NP0 0402
- 1: $0.00300

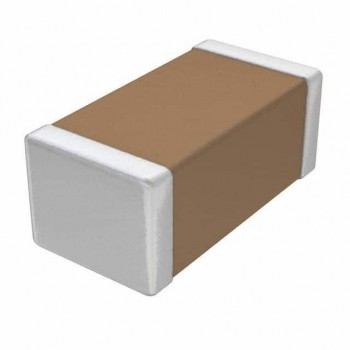

CAP CER 33PF 100V C0G/NP0 0402
