• Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionCAP CER 22PF 1000V C0G/NP0 1206
  • CategoryCeramic Capacitors
  • ECAD Model
  • Share
In Stock: 2,239

Can ship immediately

Pricing:
  • 1$0.22
  • 4,000$0.13

Quote It

Technical Details

  • Series:WCAP-CSMH
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Capacitance:22 pF
  • Tolerance:±5%
  • Voltage - Rated:1000V (1kV)
  • Temperature Coefficient:C0G, NP0
  • Operating Temperature:-55°C ~ 125°C
  • Features:High Voltage
  • Ratings:-



  • Applications:General Purpose
  • Failure Rate:-
  • Mounting Type:Surface Mount, MLCC
  • Package / Case:1206 (3216 Metric)
  • Size / Dimension:0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Height - Seated (Max):-
  • Thickness (Max):0.035" (0.90mm)
  • Lead Spacing:-
  • Lead Style:-

Related Products


CGA3E2C0G1H070D080AD

CAP CER 7PF 50V 0603 EPOXY

CGA3E2C0G1H070D080AD Datasheet
  • 1: $0.22000
  • 4000: $0.03600
  • 8000: $0.03420

C2012C0G2A272J125AA

CAP CER 2700PF 100V C0G 0805

C2012C0G2A272J125AA Datasheet
  • 1: $0.22000
  • 2000: $0.04616
  • 4000: $0.04197

GRT155R60J475ME13D

CAP CER 4.7UF 6.3V X5R 0402

GRT155R60J475ME13D Datasheet
  • 1: $0.22000
  • 10000: $0.08494
  • 20000: $0.08229

CGA4J2X7R1E224K125AA

CAP CER 0.22UF 25V X7R 0805

CGA4J2X7R1E224K125AA Datasheet
  • 1: $0.22000
  • 2000: $0.04554
  • 4000: $0.04140

C2012X7R1C105K085AC

CAP CER 1UF 16V X7R 0805

C2012X7R1C105K085AC Datasheet
  • 1: $0.22000

CGA3E2NP02A010C080AA

CAP CER 1PF 100V NP0 0603

CGA3E2NP02A010C080AA Datasheet
  • 1: $0.22000
  • 4000: $0.03600
  • 8000: $0.03420

CGA3E2NP02A050C080AA

CAP CER 5PF 100V NP0 0603

CGA3E2NP02A050C080AA Datasheet
  • 1: $0.22000
  • 4000: $0.04140
  • 8000: $0.03933

CGA3E2C0G1H050C080AD

CAP CER 5PF 50V 0603 EPOXY

CGA3E2C0G1H050C080AD Datasheet
  • 1: $0.22000
  • 4000: $0.03600
  • 8000: $0.03420

CC0805ZRY5V9BB154

CAP CER 0.15UF 50V Y5V 0805

CC0805ZRY5V9BB154 Datasheet
  • 1: $0.22000
  • 4000: $0.03472
  • 8000: $0.03230

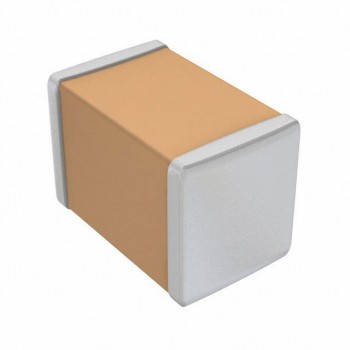

CL03A473KP3NNNC
