• Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionCAP CER 2200PF 1000V X7R 0805
  • CategoryCeramic Capacitors
  • ECAD Model
  • Share
In Stock: 2,272

Can ship immediately

Pricing:
  • 1$0.23
  • 3,000$0.14

Quote It

Technical Details

  • Series:WCAP-CSMH
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Capacitance:2200 pF
  • Tolerance:±10%
  • Voltage - Rated:1000V (1kV)
  • Temperature Coefficient:X7R
  • Operating Temperature:-55°C ~ 125°C
  • Features:High Voltage
  • Ratings:-



  • Applications:General Purpose
  • Failure Rate:-
  • Mounting Type:Surface Mount, MLCC
  • Package / Case:0805 (2012 Metric)
  • Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Height - Seated (Max):-
  • Thickness (Max):0.053" (1.35mm)
  • Lead Spacing:-
  • Lead Style:-

Related Products


C1608NP02A101J080AA

CAP CER 100PF 100V NP0 0603

C1608NP02A101J080AA Datasheet
  • 1: $0.23000
  • 4000: $0.03764
  • 8000: $0.03575

C2012CH2A272J125AA

CAP CER 2700PF 100V CH 0805

C2012CH2A272J125AA Datasheet
  • 1: $0.23000
  • 2000: $0.04140
  • 4000: $0.03764

VJ0805A4R7BXXCW1BC

CAP CER 4.7PF 25V C0G/NP0 0805

VJ0805A4R7BXXCW1BC Datasheet
  • 1: $0.25000
  • 4000: $0.04539
  • 8000: $0.04312

CC0805JRNPOBBN101

CAP CER 100PF 500V NPO 0805

CC0805JRNPOBBN101 Datasheet
  • 1: $0.23000
  • 4000: $0.04026
  • 8000: $0.03824

C2012X7R2E153K125AA

CAP CER 0.015UF 250V X7R 0805

C2012X7R2E153K125AA Datasheet
  • 1: $0.23000
  • 2000: $0.05016
  • 4000: $0.04560

C1608NP02A150J080AA

CAP CER 15PF 100V NP0 0603

C1608NP02A150J080AA Datasheet
  • 1: $0.23000
  • 4000: $0.04516
  • 8000: $0.04291

C2012JB1C225K125AA

CAP CER 2.2UF 16V JB 0805

  • 1: $0.23000

C1608X6S1H154K080AB

CAP CER 0.15UF 50V X6S 0603

C1608X6S1H154K080AB Datasheet
  • 1: $0.23000
  • 4000: $0.04560
  • 8000: $0.04332

C1608C0G2A182K080AA

CAP CER 1800PF 100V C0G 0603

C1608C0G2A182K080AA Datasheet
  • 1: $0.23000
  • 4000: $0.03800
  • 8000: $0.03610

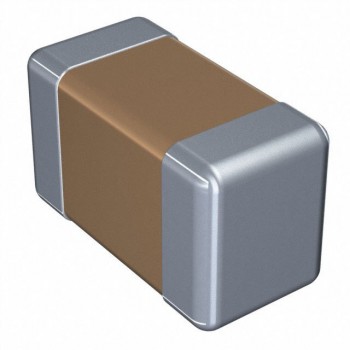

C1608NP02A030C080AA
