C1005NP01H561J050BA
TDK Corporation
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP CER 560PF 50V NP0 0402
- CategoryCeramic Capacitors
- Datasheet C1005NP01H561J050BA Datasheet
-
ECAD Model
- Share
In Stock: 6,420
Can ship immediately
Pricing:
- 1$0.14
- 10,000$0.02
- 20,000$0.019
- 30,000$0.018
Quote It
Technical Details
- Series:C
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Not For New Designs
- Capacitance:560 pF
- Tolerance:±5%
- Voltage - Rated:50V
- Temperature Coefficient:C0G, NP0
- Operating Temperature:-55°C ~ 150°C
- Features:High Temperature
- Ratings:-
- Applications:General Purpose
- Failure Rate:-
- Mounting Type:Surface Mount, MLCC
- Package / Case:0402 (1005 Metric)
- Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
- Height - Seated (Max):-
- Thickness (Max):0.022" (0.55mm)
- Lead Spacing:-
- Lead Style:-
Related Products
CAP CER 4700PF 25V X7R 0402
CGJ2B2X7R1E472K050BA Datasheet- 1: $0.14000
- 10000: $0.02304
- 20000: $0.02189
CAP CER 0.5PF 25V C0G/NP0 01005
GRM0225C1ER50WA03L Datasheet- 1: $0.14000
- 40000: $0.01728
- 80000: $0.01584

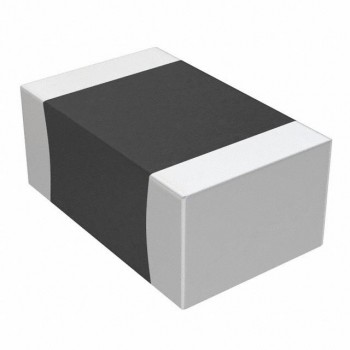

CAP CER 10000PF 100V X7R 1206
- 1: $0.14000

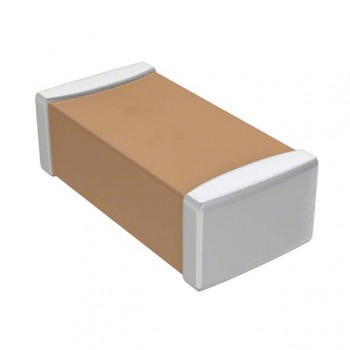

CAP CER 1000PF 16V X7R 0402
