ESR01MZPF15R0
ROHM Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 15 OHM 1% 1/5W 0402
- CategoryChip Resistor - Surface Mount
- Datasheet ESR01MZPF15R0 Datasheet
-
ECAD Model
- Share
In Stock: 10,169
Can ship immediately
Pricing:
- 1$0.03365
- 10,000$0.03211
Quote It
Technical Details
- Series:ESR
- Package:Tape & Reel (TR)
- Part Status:Active
- Resistance:15 Ohms
- Tolerance:±1%
- Power (Watts):0.2W, 1/5W
- Composition:Thick Film
- Features:Automotive AEC-Q200, Pulse Withstanding
- Temperature Coefficient:±100ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:0402 (1005 Metric)
- Supplier Device Package:0402
- Ratings:AEC-Q200
- Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
- Height - Seated (Max):0.016" (0.40mm)
- Number of Terminations:2
- Failure Rate:-
Related Products
RES, PULSE, 1206, 5%, 10 OHM, 0.
- 1: $0.30000
RESHIGHPOWERA 0805 100R 1% 1/2W
- 1: $0.30000
RESHIGHPOWERA 0805 10R 1% 1/2W T
- 1: $0.30000
RES, PULSE, 1206, 5%, 15 OHM, 0.
- 1: $0.30000
RES, PULSE, 1206, 5%, 33 OHM, 0.
- 1: $0.30000

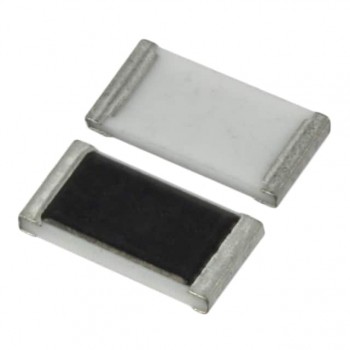

RES, PULSE, 1206, 5%, 1 KOHM, 0.
