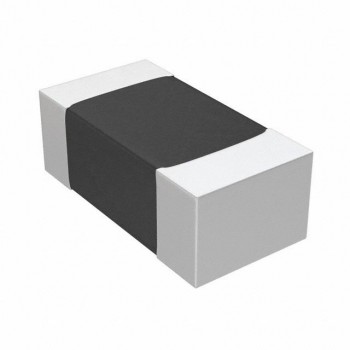

CHV1206-JW-104ELF
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 100K OHM 5% 1/4W 1206
- CategoryChip Resistor - Surface Mount
- Datasheet CHV1206-JW-104ELF Datasheet
-
ECAD Model
- Share
In Stock: 25,168
Can ship immediately
Pricing:
- 1$0.34
- 25,000$0.03597
Quote It
Technical Details
- Series:CHV
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:100 kOhms
- Tolerance:±5%
- Power (Watts):0.25W, 1/4W
- Composition:Thick Film
- Features:High Voltage
- Temperature Coefficient:±200ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:1206 (3216 Metric)
- Supplier Device Package:1206
- Ratings:-
- Size / Dimension:0.122" L x 0.063" W (3.10mm x 1.60mm)
- Height - Seated (Max):0.026" (0.65mm)
- Number of Terminations:2
- Failure Rate:-
