PCR0805-4M7J1
Riedon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 4.7M OHM 5% 1/4W 0805
- CategoryChip Resistor - Surface Mount
- Datasheet PCR0805-4M7J1 Datasheet
-
ECAD Model
- Share
In Stock: 5,075
Can ship immediately
Pricing:
- 1$0.34
- 5,000$0.03733
- 10,000$0.03483
- 25,000$0.03309
- 50,000$0.03242
- 125,000$0.03223
Quote It
Technical Details
- Series:PCR
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:4.7 MOhms
- Tolerance:±5%
- Power (Watts):0.25W, 1/4W
- Composition:Thick Film
- Features:Pulse Withstanding
- Temperature Coefficient:±100ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:0805 (2012 Metric)
- Supplier Device Package:0805
- Ratings:-
- Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
- Height - Seated (Max):0.024" (0.60mm)
- Number of Terminations:2
- Failure Rate:-
Related Products
RES 150 OHM 0.5% 1/8W 0805 SMD
- 1: $0.34000
RES 680 OHM 0.5% 1/8W 0805 SMD
- 1: $0.34000
RES 120 OHM 0.5% 1/8W 0805 SMD
- 1: $0.34000
RES 1K OHM 0.5% 1/8W 0805 SMD
- 1: $0.34000
RES 100K OHM 0.5% 1/8W 0805 SMD
- 1: $0.34000
RES 3.3K OHM 0.5% 1/8W 0805 SMD
- 1: $0.34000
RES 10K OHM 0.5% 1/8W 0805 SMD
- 1: $0.34000

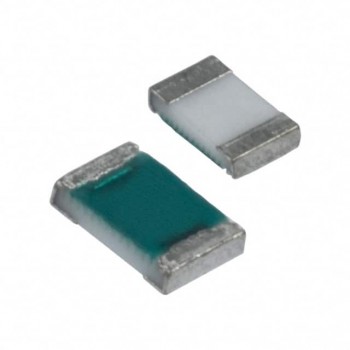

RES SMD 20 OHM 1% 1/3W 0805
