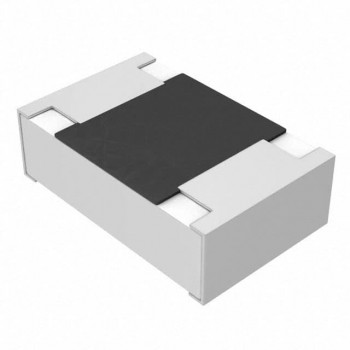

ERJ-P6WJ3R9V
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 3.9 OHM 5% 1/2W 0805
- CategoryChip Resistor - Surface Mount
- Datasheet ERJ-P6WJ3R9V Datasheet
-
ECAD Model
- Share
In Stock: 1,446
Can ship immediately
Pricing:
- 1$0.43
- 5,000$0.07487
- 10,000$0.07322
- 25,000$0.07072
- 50,000$0.06933
- 125,000$0.06866
Quote It
Technical Details
- Series:ERJ-P6W
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Not For New Designs
- Resistance:3.9 Ohms
- Tolerance:±5%
- Power (Watts):0.5W, 1/2W
- Composition:Thick Film
- Features:Automotive AEC-Q200, Pulse Withstanding
- Temperature Coefficient:-100/ +600ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:0805 (2012 Metric)
- Supplier Device Package:0805
- Ratings:AEC-Q200
- Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
- Height - Seated (Max):0.030" (0.75mm)
- Number of Terminations:2
- Failure Rate:-
Related Products

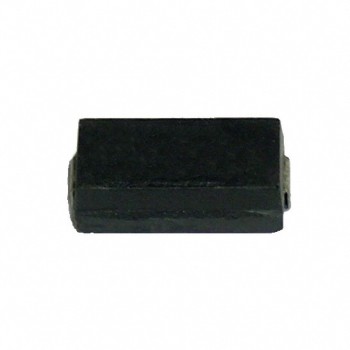

RES 0.01 OHM 2W 5% 4527 TR
- 1: $1.14000
- 1200: $0.43225
- 2400: $0.42250

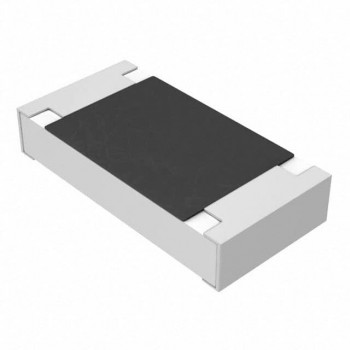

RESISTOR CURRENT SENSE
