ERJ-2BQFR56X
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES 0.56 OHM 1% 1/6W 0402
- CategoryChip Resistor - Surface Mount
- Datasheet ERJ-2BQFR56X Datasheet
-
ECAD Model
- Share
In Stock: 3,754
Can ship immediately
Pricing:
- 1$0.48
- 10,000$0.05683
- 30,000$0.05445
- 50,000$0.05328
- 100,000$0.05224
Quote It
Technical Details
- Series:ERJ-2B
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:560 mOhms
- Tolerance:±1%
- Power (Watts):0.167W, 1/6W
- Composition:Thick Film
- Features:Automotive AEC-Q200, Current Sense
- Temperature Coefficient:±250ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:0402 (1005 Metric)
- Supplier Device Package:0402
- Ratings:AEC-Q200
- Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
- Height - Seated (Max):0.016" (0.40mm)
- Number of Terminations:2
- Failure Rate:-
Related Products
RES SMD 8.25KOHM 0.1% 1/10W 0603
RG1608P-8251-B-T5 Datasheet- 1: $0.48000
- 5000: $0.05970
- 10000: $0.05786
RES SMD 1.82K OHM 0.1% 1/8W 0805
RG2012P-1821-B-T5 Datasheet- 1: $0.48000
- 5000: $0.05970
- 10000: $0.05786
RES SMD 4.32KOHM 0.1% 1/10W 0603
RG1608P-4321-B-T5 Datasheet- 1: $0.48000
- 5000: $0.05970
- 10000: $0.05786
RES SMD 34.8KOHM 0.1% 1/10W 0603
RG1608P-3482-B-T5 Datasheet- 1: $0.48000
- 5000: $0.05970
- 10000: $0.05786

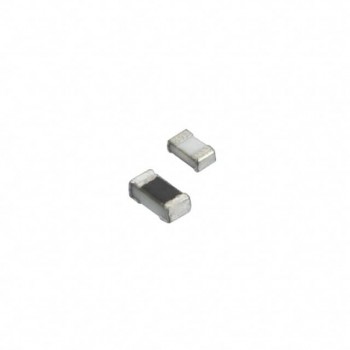

RES SMD 2.21KOHM 0.1% 1/10W 0603
