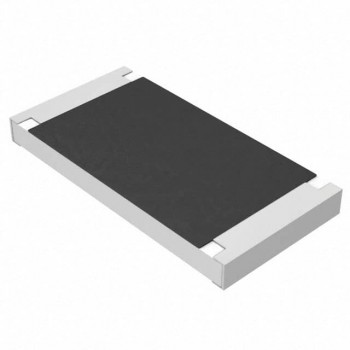

ERJ-1TNF22R6U
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 22.6 OHM 1% 1W 2512
- CategoryChip Resistor - Surface Mount
- Datasheet ERJ-1TNF22R6U Datasheet
-
ECAD Model
- Share
In Stock: 2,303
Can ship immediately
Pricing:
- 1$0.58
- 4,000$0.11392
- 8,000$0.11223
- 12,000$0.10759
- 28,000$0.10548
- 100,000$0.10336
Quote It
Technical Details
- Series:ERJ-1TN
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:22.6 Ohms
- Tolerance:±1%
- Power (Watts):1W
- Composition:Thick Film
- Features:Automotive AEC-Q200
- Temperature Coefficient:±100ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:2512 (6432 Metric)
- Supplier Device Package:2512
- Ratings:AEC-Q200
- Size / Dimension:0.252" L x 0.126" W (6.40mm x 3.20mm)
- Height - Seated (Max):0.028" (0.70mm)
- Number of Terminations:2
- Failure Rate:-
