PWR5322W1000JE
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 100 OHM 5% 3W 5322
- CategoryChip Resistor - Surface Mount
- Datasheet PWR5322W1000JE Datasheet
-
ECAD Model
- Share
In Stock: 1,161
Can ship immediately
Pricing:
- 1$1.3
- 1,500$0.51671
- 3,000$0.50505
- 7,500$0.49534
- 10,500$0.48368
Quote It
Technical Details
- Series:PWR5322
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:100 Ohms
- Tolerance:±5%
- Power (Watts):3W
- Composition:Wirewound
- Features:Current Sense, Pulse Withstanding
- Temperature Coefficient:±20ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:5322 J-Lead
- Supplier Device Package:5322
- Ratings:-
- Size / Dimension:0.532" L x 0.217" W (13.50mm x 5.50mm)
- Height - Seated (Max):0.243" (6.16mm)
- Number of Terminations:2
- Failure Rate:-
Related Products

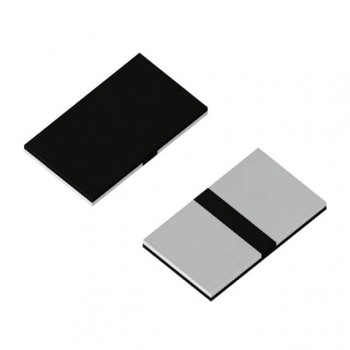

SHUNT
- 1: $1.31000

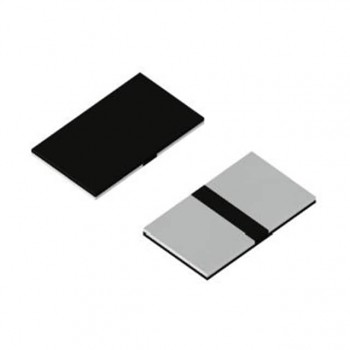

SHUNT
- 1: $1.31000

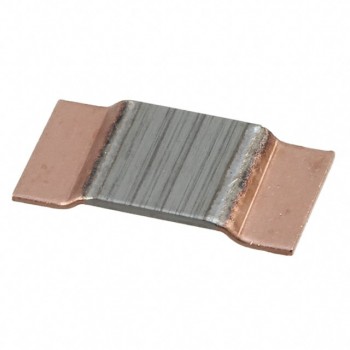

SHUNT
- 1: $1.31000

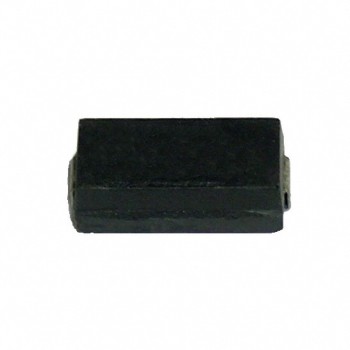

SHUNT
