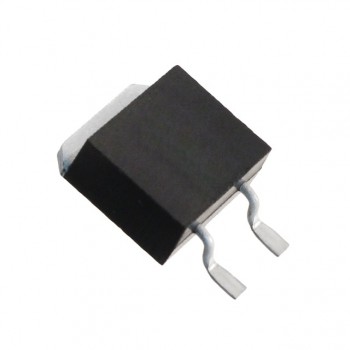

PWR263S-20-10R0J
J.W. Miller / Bourns
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 10 OHM 5% 20W D2PAK
- CategoryChip Resistor - Surface Mount
- Datasheet PWR263S-20-10R0J Datasheet
-
ECAD Model
- Share
In Stock: 164
Can ship immediately
Pricing:
- 1$3.53
- 10$3.15601
- 25$2.96634
- 50$2.71371
- 100$2.33514
- 250$2.01954
- 500$1.83022
- 1,000$1.60933
- 5,000$1.55252
Quote It
Technical Details
- Series:PWR263S-20
- Package:Tube
- Part Status:Active
- Resistance:10 Ohms
- Tolerance:±5%
- Power (Watts):20W
- Composition:Thick Film
- Features:Automotive AEC-Q200, Current Sense, Pulse Withstanding
- Temperature Coefficient:±100ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package:D2PAK
- Ratings:AEC-Q200
- Size / Dimension:0.398" L x 0.409" W (10.10mm x 10.40mm)
- Height - Seated (Max):0.192" (4.88mm)
- Number of Terminations:2
- Failure Rate:-
