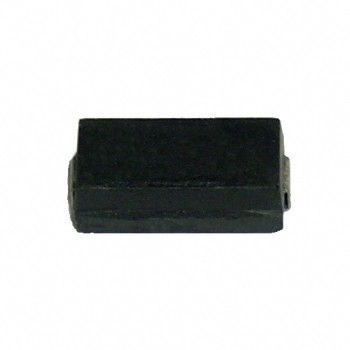

NSM2615JT5R60
Stackpole Electronics, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES 5.6 OHM 5% 1W 2615
- CategoryChip Resistor - Surface Mount
- Datasheet NSM2615JT5R60 Datasheet
-
ECAD Model
- Share
In Stock: 160
Can ship immediately
Pricing:
- 1$0.66633
- 1,500$0.6513
Quote It
Technical Details
- Series:SM
- Package:Tape & Reel (TR)
- Part Status:Active
- Resistance:5.6 Ohms
- Tolerance:±5%
- Power (Watts):1W
- Composition:Wirewound
- Features:Moisture Resistant, Non-Inductive, Pulse Withstanding
- Temperature Coefficient:±100ppm/°C
- Operating Temperature:-55°C ~ 275°C
- Package / Case:2615 (6538 Metric), J-Lead
- Supplier Device Package:2615
- Ratings:-
- Size / Dimension:0.260" L x 0.150" W (6.60mm x 3.81mm)
- Height - Seated (Max):0.155" (3.94mm)
- Number of Terminations:2
- Failure Rate:-
