WSL0805R0220FEA
Vishay / Dale
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES 0.022 OHM 1% 1/8W 0805
- CategoryChip Resistor - Surface Mount
-
ECAD Model
- Share
In Stock: 10,200
Can ship immediately
Pricing:
- 1$0.8
- 5,000$0.28472
- 10,000$0.27632
- 25,000$0.26924
Quote It
Technical Details
- Series:WSL
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:22 mOhms
- Tolerance:±1%
- Power (Watts):0.125W, 1/8W
- Composition:Metal Element
- Features:Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
- Temperature Coefficient:±75ppm/°C
- Operating Temperature:-65°C ~ 170°C
- Package / Case:0805 (2012 Metric)
- Supplier Device Package:0805
- Ratings:AEC-Q200
- Size / Dimension:0.080" L x 0.050" W (2.03mm x 1.27mm)
- Height - Seated (Max):0.018" (0.46mm)
- Number of Terminations:2
- Failure Rate:-
Related Products
RES 0.12 OHM 1% 1/2W 2010
- 1: $0.84000
- 4000: $0.30446
- 8000: $0.29820
RES 0.47 OHM 1% 1/2W 2010
- 1: $0.84000
- 4000: $0.30446
- 8000: $0.29820
RES 3502 2R7 1%
- 1: $0.86000
- 2000: $0.25851
- 6000: $0.25268
RES 3502 1R6 1%
- 1: $0.86000
- 2000: $0.25851
- 6000: $0.25268

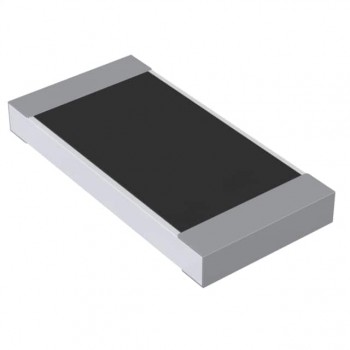

RES 3502 1R1 1%
