CRCW04021M00JNEDHP
Vishay / Dale
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 1M OHM 5% 1/5W 0402
- CategoryChip Resistor - Surface Mount
- Datasheet CRCW04021M00JNEDHP Datasheet
-
ECAD Model
- Share
In Stock: 2,777
Can ship immediately
Pricing:
- 1$0.13
- 10,000$0.01265
- 30,000$0.01161
- 50,000$0.01091
- 100,000$0.01074
Quote It
Technical Details
- Series:CRCW-HP
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:1 MOhms
- Tolerance:±5%
- Power (Watts):0.2W, 1/5W
- Composition:Thick Film
- Features:Automotive AEC-Q200, Pulse Withstanding
- Temperature Coefficient:±200ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:0402 (1005 Metric)
- Supplier Device Package:0402
- Ratings:AEC-Q200
- Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
- Height - Seated (Max):0.016" (0.40mm)
- Number of Terminations:2
- Failure Rate:-
Related Products
RES SMD 4.75K OHM 1% 1/10W 0402
MCS04020C4751FE000 Datasheet- 1: $0.13000
- 10000: $0.02940
- 30000: $0.02900
RES SMD 360K OHM 5% 1/5W 0402
CRCW0402360KJNEDHP Datasheet- 1: $0.13000
- 10000: $0.01265
- 30000: $0.01161
RES SMD 820K OHM 5% 1/5W 0402
CRCW0402820KJNEDHP Datasheet- 1: $0.13000
- 10000: $0.01265
- 30000: $0.01161

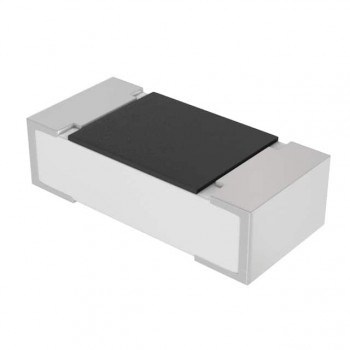

RES SMD 390K OHM 5% 1/5W 0402
