SWR06JTEQ0560
Viking Tech
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES 56 OHM 5% 3/4W 1206
- CategoryChip Resistor - Surface Mount
-
ECAD Model
- Share
In Stock: 141
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:SWR
- Package:Tape & Reel (TR)
- Part Status:Active
- Resistance:56 Ohms
- Tolerance:±5%
- Power (Watts):0.75W, 3/4W
- Composition:Thick Film
- Features:Automotive AEC-Q200, Pulse Withstanding
- Temperature Coefficient:±100ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:1206 (3216 Metric)
- Supplier Device Package:1206
- Ratings:AEC-Q200
- Size / Dimension:0.122" L x 0.061" W (3.10mm x 1.55mm)
- Height - Seated (Max):0.026" (0.65mm)
- Number of Terminations:2
- Failure Rate:-
Related Products
RES 20.5K OHM 1% 1/20W 0201
Call for price
RES 150K OHM 1% 3/4W 2010
Call for price
RES 2.7K OHM 1% 1/8W 0402
Call for price
RES 82.5K OHM 1% 1/8W 0805
Call for price
RES 36K OHM 0.5% 1/10W 0603
Call for price
RES 14K OHM 1% 1/16W 0402
Call for price
RES 8.2 OHM 5% 1/16W 0402
Call for price
RES 560 OHM 1% 3/4W 0612
Call for price

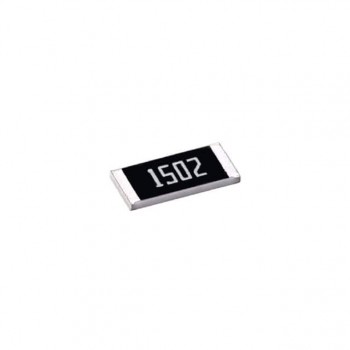

RES 787K OHM 1% 1/16W 0402
Call for price

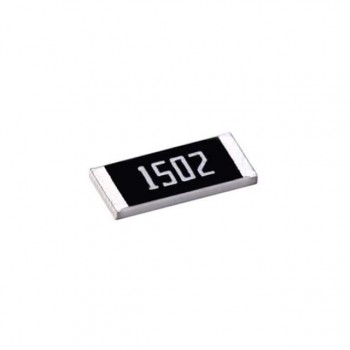

RES 1.58K OHM 1% 1/10W 0603
