CS25JTGR005
Viking Tech
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES 5M OHM 5% 3W 1225
- CategoryChip Resistor - Surface Mount
-
ECAD Model
- Share
In Stock: 146
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:CS
- Package:Tape & Reel (TR)
- Part Status:Active
- Resistance:5 mOhms
- Tolerance:±5%
- Power (Watts):3W
- Composition:Thick Film
- Features:Current Sense
- Temperature Coefficient:±300ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:Wide 2512 (6432 Metric), 1225
- Supplier Device Package:1225
- Ratings:-
- Size / Dimension:0.126" L x 0.254" W (3.20mm x 6.45mm)
- Height - Seated (Max):0.041" (1.05mm)
- Number of Terminations:2
- Failure Rate:-
Related Products
RES 95.3K OHM 1% 1/8W 0805
Call for price
RES 1.87 OHM 1% 1/8W 0805
Call for price
RES 30K OHM 1% 3/4W 2010
Call for price
RES 3K OHM 1% 1/4W 1206
Call for price
RES 120 OHM 5% 1/2W 1206
Call for price
RES 8.25K OHM 1% 1/4W 1206
Call for price
RES 2K OHM 5% 1/2W 1206
Call for price
RES 2 OHM 5% 1/20W 0201
Call for price
RES 220 OHM 5% 1/2W 0805
Call for price

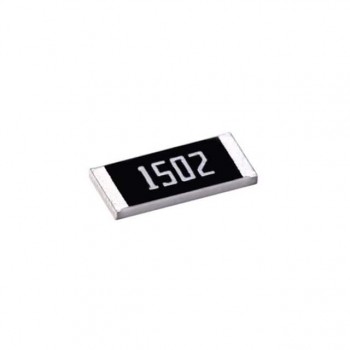

RES 300K OHM 1% 1/4W 1206
