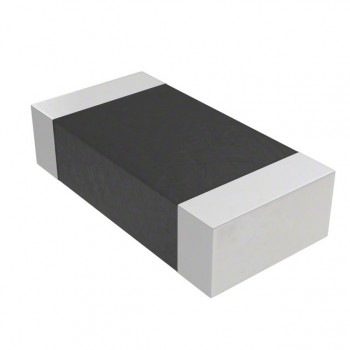

AC0402JR-07560RL
Yageo
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 560 OHM 5% 1/16W 0402
- CategoryChip Resistor - Surface Mount
- Datasheet AC0402JR-07560RL Datasheet
-
ECAD Model
- Share
In Stock: 19,987
Can ship immediately
Pricing:
- 1$0.1
- 10,000$0.00199
Quote It
Technical Details
- Series:AC
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:560 Ohms
- Tolerance:±5%
- Power (Watts):0.063W, 1/16W
- Composition:Thick Film
- Features:Automotive AEC-Q200, Moisture Resistant
- Temperature Coefficient:±100ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:0402 (1005 Metric)
- Supplier Device Package:0402
- Ratings:AEC-Q200
- Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
- Height - Seated (Max):0.015" (0.37mm)
- Number of Terminations:2
- Failure Rate:-
