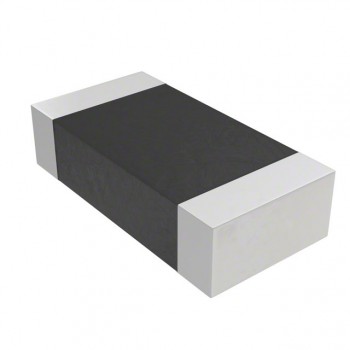

AC0603JR-0720KL
Yageo
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 20K OHM 5% 1/10W 0603
- CategoryChip Resistor - Surface Mount
- Datasheet AC0603JR-0720KL Datasheet
-
ECAD Model
- Share
In Stock: 10,720
Can ship immediately
Pricing:
- 1$0.1
- 5,000$0.00285
- 10,000$0.00248
- 25,000$0.00218
- 50,000$0.002
- 125,000$0.00196
Quote It
Technical Details
- Series:AC
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:20 kOhms
- Tolerance:±5%
- Power (Watts):0.1W, 1/10W
- Composition:Thick Film
- Features:Automotive AEC-Q200, Moisture Resistant
- Temperature Coefficient:±100ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:0603 (1608 Metric)
- Supplier Device Package:0603
- Ratings:AEC-Q200
- Size / Dimension:0.063" L x 0.031" W (1.60mm x 0.80mm)
- Height - Seated (Max):0.022" (0.55mm)
- Number of Terminations:2
- Failure Rate:-
