PTN0603E8061BST1
Vishay
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES 8.06K OHM 0.1% 0.15W 0603
- CategoryChip Resistor - Surface Mount
- Datasheet PTN0603E8061BST1 Datasheet
-
ECAD Model
- Share
In Stock: 4,699
Can ship immediately
Pricing:
- 1$0.63
- 1,000$0.2175
Quote It
Technical Details
- Series:PTN
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:8.06 kOhms
- Tolerance:±0.1%
- Power (Watts):0.15W
- Composition:Thin Film
- Features:Anti-Sulfur, Moisture Resistant, Non-Inductive
- Temperature Coefficient:±25ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:0603 (1608 Metric)
- Supplier Device Package:0603
- Ratings:-
- Size / Dimension:0.064" L x 0.032" W (1.63mm x 0.81mm)
- Height - Seated (Max):0.020" (0.51mm)
- Number of Terminations:2
- Failure Rate:-
Related Products
RES 750 OHM 1% 1/2W 1206
- 1: $0.21000
RES 33 OHM 1% 1/2W 1206
- 1: $0.21000
RES 270 OHM 1% 1/2W 1206
- 1: $0.21000
RES 1K OHM 1% 1/2W 1206
- 1: $0.21000
RES 470 OHM 1% 1/2W 1206
- 1: $0.21000
RES SMD 9.09KOHM 0.5% 1/10W 0603
AT0603DRD079K09L Datasheet- 1: $0.21000
- 5000: $0.02552
- 10000: $0.02381

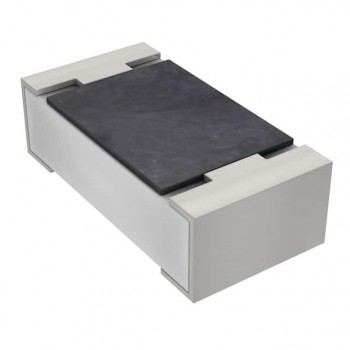

RES SMD 499K OHM 0.5% 1/10W 0603
