RT0603BRD07316KL
Yageo
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 316K OHM 0.1% 1/10W 0603
- CategoryChip Resistor - Surface Mount
- Datasheet RT0603BRD07316KL Datasheet
-
ECAD Model
- Share
In Stock: 2,097
Can ship immediately
Pricing:
- 1$0.32
- 5,000$0.0393
- 10,000$0.03668
- 25,000$0.03618
Quote It
Technical Details
- Series:RT
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:316 kOhms
- Tolerance:±0.1%
- Power (Watts):0.1W, 1/10W
- Composition:Thin Film
- Features:-
- Temperature Coefficient:±25ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:0603 (1608 Metric)
- Supplier Device Package:0603
- Ratings:-
- Size / Dimension:0.063" L x 0.031" W (1.60mm x 0.80mm)
- Height - Seated (Max):0.022" (0.55mm)
- Number of Terminations:2
- Failure Rate:-
Related Products
RES SMD 3.09KOHM 0.1% 1/10W 0603
RT0603BRD073K09L Datasheet- 1: $0.32000
- 5000: $0.04253
- 10000: $0.03969
RES SMD 49.9 OHM 1% 1/32W 01005
RC0100FR-0749R9L Datasheet- 1: $0.32000
- 20000: $0.03238
- 40000: $0.03076
RES SMD 221K OHM 0.1% 1/10W 0603
RT0603BRD07221KL Datasheet- 1: $0.32000
- 5000: $0.03930
- 10000: $0.03668
RES SMD 14.7KOHM 0.1% 1/10W 0603
RT0603BRD0714K7L Datasheet- 1: $0.32000
- 5000: $0.03930
- 10000: $0.03668
RES SMD 11.3KOHM 0.1% 1/10W 0603
RT0603BRD0711K3L Datasheet- 1: $0.32000
- 5000: $0.03930
- 10000: $0.03668
RES SMD 90.9KOHM 0.1% 1/10W 0603
RT0603BRD0790K9L Datasheet- 1: $0.32000
- 5000: $0.04253
- 10000: $0.03969

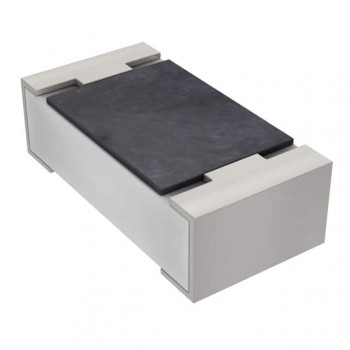

RES SMD 2.67KOHM 0.1% 1/10W 0603
