AC2010JK-07560RL
Yageo
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 560 OHM 5% 3/4W 2010
- CategoryChip Resistor - Surface Mount
- Datasheet AC2010JK-07560RL Datasheet
-
ECAD Model
- Share
In Stock: 5,717
Can ship immediately
Pricing:
- 1$0.36
- 4,000$0.04362
- 8,000$0.03965
- 12,000$0.03702
- 28,000$0.03516
- 100,000$0.03424
Quote It
Technical Details
- Series:AC
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:560 Ohms
- Tolerance:±5%
- Power (Watts):0.75W, 3/4W
- Composition:Thick Film
- Features:Automotive AEC-Q200, Moisture Resistant
- Temperature Coefficient:±100ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:2010 (5025 Metric)
- Supplier Device Package:2010
- Ratings:AEC-Q200
- Size / Dimension:0.197" L x 0.098" W (5.00mm x 2.50mm)
- Height - Seated (Max):0.026" (0.65mm)
- Number of Terminations:2
- Failure Rate:-
Related Products

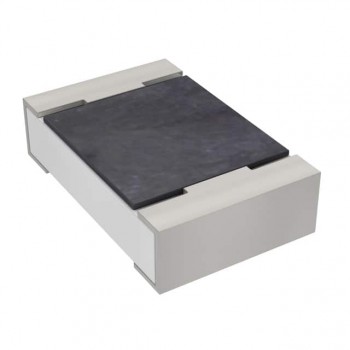

RES SMD 1.15K OHM 0.1% 1/8W 0805
