RL0805JR-070R22L
Yageo
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES 0.22 OHM 5% 1/8W 0805
- CategoryChip Resistor - Surface Mount
- Datasheet RL0805JR-070R22L Datasheet
-
ECAD Model
- Share
In Stock: 9,502
Can ship immediately
Pricing:
- 1$0.04785
- 5,000$0.04568
Quote It
Technical Details
- Series:RL
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:220 mOhms
- Tolerance:±5%
- Power (Watts):0.125W, 1/8W
- Composition:Thick Film
- Features:Automotive AEC-Q200, Current Sense, Moisture Resistant
- Temperature Coefficient:±600ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:0805 (2012 Metric)
- Supplier Device Package:0805
- Ratings:AEC-Q200
- Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
- Height - Seated (Max):0.024" (0.60mm)
- Number of Terminations:2
- Failure Rate:-
Related Products
RES SMD 2.2K OHM 0.1% 1/16W 0402
RT0402BRE072K2L Datasheet- 1: $0.38000
- 10000: $0.04272
- 30000: $0.04214
RES SMD 4.02KOHM 0.1% 1/16W 0402
RT0402BRE074K02L Datasheet- 1: $0.38000
- 10000: $0.04272
- 30000: $0.04214
RES SMD 69.8KOHM 0.1% 1/16W 0402
RT0402BRD0769K8L Datasheet- 1: $0.38000
- 10000: $0.04275
- 30000: $0.04217
RES SMD 665 OHM 0.1% 1/16W 0402
RT0402BRD07665RL Datasheet- 1: $0.38000
- 10000: $0.04275
- 30000: $0.04217
RES SMD 21.5KOHM 0.1% 1/16W 0402
RT0402BRD0721K5L Datasheet- 1: $0.38000
- 10000: $0.04275
- 30000: $0.04217
RES SMD 24.9 OHM 0.1% 1/16W 0402
RT0402BRD0724R9L Datasheet- 1: $0.38000
- 10000: $0.04275
- 30000: $0.04217
RES SMD 2.15KOHM 0.1% 1/16W 0402
RT0402BRD072K15L Datasheet- 1: $0.38000
- 10000: $0.04275
- 30000: $0.04217

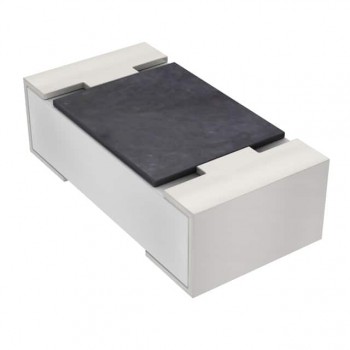

RES SMD 11.3KOHM 0.1% 1/16W 0402
