RT0402BRD0722KL
Yageo
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 22K OHM 0.1% 1/16W 0402
- CategoryChip Resistor - Surface Mount
- Datasheet RT0402BRD0722KL Datasheet
-
ECAD Model
- Share
In Stock: 13,027
Can ship immediately
Pricing:
- 1$0.38
- 10,000$0.04275
- 30,000$0.04217
Quote It
Technical Details
- Series:RT
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:22 kOhms
- Tolerance:±0.1%
- Power (Watts):0.063W, 1/16W
- Composition:Thin Film
- Features:-
- Temperature Coefficient:±25ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:0402 (1005 Metric)
- Supplier Device Package:0402
- Ratings:-
- Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
- Height - Seated (Max):0.014" (0.35mm)
- Number of Terminations:2
- Failure Rate:-
Related Products
RES SMD 121K OHM 0.1% 1/10W 0603
RT0603BRE07121KL Datasheet- 1: $0.38000
- 5000: $0.04770
- 10000: $0.04623
RES SMD 44.2KOHM 0.1% 1/16W 0402
RT0402BRE0744K2L Datasheet- 1: $0.38000
- 10000: $0.04272
- 30000: $0.04214
RES SMD 301K OHM 0.1% 1/10W 0603
RT0603BRE07301KL Datasheet- 1: $0.38000
- 5000: $0.04770
- 10000: $0.04623
RES SMD 3.65KOHM 0.1% 1/10W 0603
RT0603BRE073K65L Datasheet- 1: $0.38000
- 5000: $0.04770
- 10000: $0.04623
RES SMD 1.05KOHM 0.1% 1/16W 0402
RT0402BRD071K05L Datasheet- 1: $0.38000
- 10000: $0.04275
- 30000: $0.04217
RES SMD 10.7KOHM 0.1% 1/10W 0603
RT0603BRE0710K7L Datasheet- 1: $0.38000
- 5000: $0.04770
- 10000: $0.04623

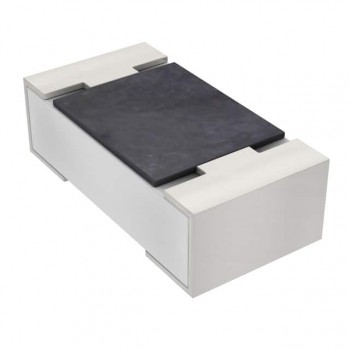

RES SMD 11.8KOHM 0.1% 1/16W 0402
