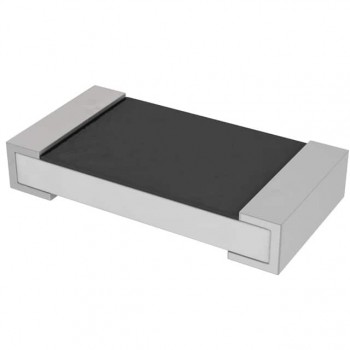

PT1206FR-7W0R3L
Yageo
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES 0.3 OHM 1% 1/2W 1206
- CategoryChip Resistor - Surface Mount
- Datasheet PT1206FR-7W0R3L Datasheet
-
ECAD Model
- Share
In Stock: 3,987
Can ship immediately
Pricing:
- 1$0.41
- 5,000$0.06468
- 10,000$0.06324
- 25,000$0.06109
- 50,000$0.05989
- 125,000$0.05931
Quote It
Technical Details
- Series:PT
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:300 mOhms
- Tolerance:±1%
- Power (Watts):0.5W, 1/2W
- Composition:Thick Film
- Features:Automotive AEC-Q200, Current Sense, Moisture Resistant
- Temperature Coefficient:±75ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:1206 (3216 Metric)
- Supplier Device Package:1206
- Ratings:AEC-Q200
- Size / Dimension:0.122" L x 0.063" W (3.10mm x 1.60mm)
- Height - Seated (Max):0.026" (0.65mm)
- Number of Terminations:2
- Failure Rate:-
Related Products

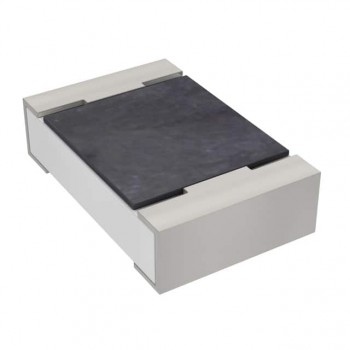

RES SMD 100KOHM 0.25% 1/10W 0603
