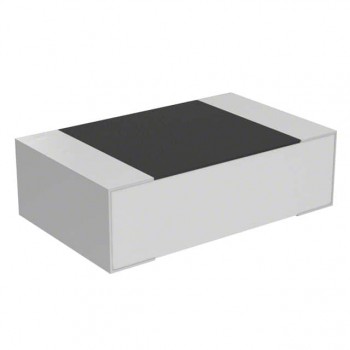

PF0805FRM7P0R02L
Yageo
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES 0.02 OHM 1% 1/8W 0805
- CategoryChip Resistor - Surface Mount
- Datasheet PF0805FRM7P0R02L Datasheet
-
ECAD Model
- Share
In Stock: 1,888
Can ship immediately
Pricing:
- 1$0.76
- 4,000$0.25338
- 8,000$0.24767
- 12,000$0.23909
- 28,000$0.23338
Quote It
Technical Details
- Series:PF
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:20 mOhms
- Tolerance:±1%
- Power (Watts):0.125W, 1/8W
- Composition:Metal Foil
- Features:Current Sense, Moisture Resistant
- Temperature Coefficient:±75ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:0805 (2012 Metric)
- Supplier Device Package:0805
- Ratings:-
- Size / Dimension:0.080" L x 0.050" W (2.03mm x 1.27mm)
- Height - Seated (Max):0.018" (0.45mm)
- Number of Terminations:2
- Failure Rate:-
