PAT0805E4022BST1
Vishay
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 40.2K OHM 0.1% 1/5W 0805
- CategoryChip Resistor - Surface Mount
- Datasheet PAT0805E4022BST1 Datasheet
-
ECAD Model
- Share
In Stock: 1,525
Can ship immediately
Pricing:
- 1$0.87
- 1,000$0.3335
Quote It
Technical Details
- Series:PAT
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:40.2 kOhms
- Tolerance:±0.1%
- Power (Watts):0.2W, 1/5W
- Composition:Thin Film
- Features:Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
- Temperature Coefficient:±25ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:0805 (2012 Metric)
- Supplier Device Package:0805
- Ratings:AEC-Q200
- Size / Dimension:0.080" L x 0.050" W (2.03mm x 1.27mm)
- Height - Seated (Max):0.018" (0.46mm)
- Number of Terminations:2
- Failure Rate:-
Related Products
RES 0.002 OHM 5% 2W 2512
- 1: $0.88000

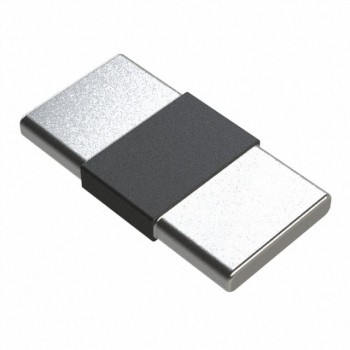

RES 0.004 OHM 1% 3W 2512
