RT0603DRE077K15L
Yageo
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 7.15KOHM 0.5% 1/10W 0603
- CategoryChip Resistor - Surface Mount
- Datasheet RT0603DRE077K15L Datasheet
-
ECAD Model
- Share
In Stock: 6,987
Can ship immediately
Pricing:
- 1$0.1
- 5,000$0.01257
- 10,000$0.01127
- 25,000$0.01035
- 50,000$0.01021
Quote It
Technical Details
- Series:RT
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:7.15 kOhms
- Tolerance:±0.5%
- Power (Watts):0.1W, 1/10W
- Composition:Thin Film
- Features:-
- Temperature Coefficient:±50ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:0603 (1608 Metric)
- Supplier Device Package:0603
- Ratings:-
- Size / Dimension:0.063" L x 0.031" W (1.60mm x 0.80mm)
- Height - Seated (Max):0.022" (0.55mm)
- Number of Terminations:2
- Failure Rate:-
Related Products
RES SMD 80.6KOHM 0.5% 1/10W 0603
RT0603DRE0780K6L Datasheet- 1: $0.10000
- 5000: $0.01257
- 10000: $0.01127
RES SMD 8.06KOHM 0.5% 1/10W 0603
RT0603DRE078K06L Datasheet- 1: $0.10000
- 5000: $0.01257
- 10000: $0.01127
RES SMD 8.87KOHM 0.5% 1/10W 0603
RT0603DRE078K87L Datasheet- 1: $0.10000
- 5000: $0.01257
- 10000: $0.01127
RES SMD 90.9KOHM 0.5% 1/10W 0603
RT0603DRE0790K9L Datasheet- 1: $0.10000
- 5000: $0.01257
- 10000: $0.01127
RES SMD 9.53KOHM 0.5% 1/10W 0603
RT0603DRE079K53L Datasheet- 1: $0.10000
- 5000: $0.01257
- 10000: $0.01127
RES SMD 1.37KOHM 0.5% 1/10W 0603
RT0603DRE071K37L Datasheet- 1: $0.10000
- 5000: $0.01257
- 10000: $0.01127

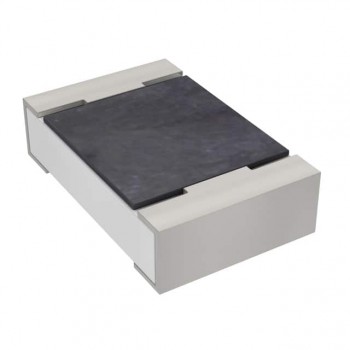

RES SMD 12.1K OHM 0.5% 1/8W 0805
