AC0805JR-072K2L
Yageo
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 2.2K OHM 5% 1/8W 0805
- CategoryChip Resistor - Surface Mount
- Datasheet AC0805JR-072K2L Datasheet
-
ECAD Model
- Share
In Stock: 4,028
Can ship immediately
Pricing:
- 1$0.1
- 5,000$0.00509
- 10,000$0.00442
- 25,000$0.00388
- 50,000$0.00356
- 125,000$0.00349
Quote It
Technical Details
- Series:AC
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:2.2 kOhms
- Tolerance:±5%
- Power (Watts):0.125W, 1/8W
- Composition:Thick Film
- Features:Automotive AEC-Q200, Moisture Resistant
- Temperature Coefficient:±100ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:0805 (2012 Metric)
- Supplier Device Package:0805
- Ratings:AEC-Q200
- Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
- Height - Seated (Max):0.024" (0.60mm)
- Number of Terminations:2
- Failure Rate:-
Related Products

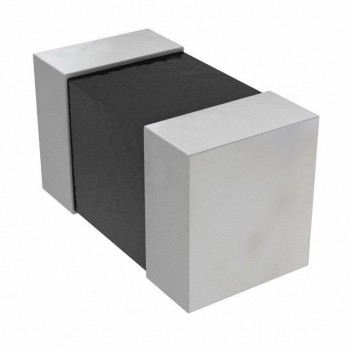

RES SMD 8.25K OHM 1% 1/20W 0201
