RT1206DRE07560RL
Yageo
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 560 OHM 0.5% 1/4W 1206
- CategoryChip Resistor - Surface Mount
- Datasheet RT1206DRE07560RL Datasheet
-
ECAD Model
- Share
In Stock: 681
Can ship immediately
Pricing:
- 1$0.23
- 5,000$0.02835
- 10,000$0.02646
- 25,000$0.0261
Quote It
Technical Details
- Series:RT
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:560 Ohms
- Tolerance:±0.5%
- Power (Watts):0.25W, 1/4W
- Composition:Thin Film
- Features:-
- Temperature Coefficient:±50ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:1206 (3216 Metric)
- Supplier Device Package:1206
- Ratings:-
- Size / Dimension:0.122" L x 0.063" W (3.10mm x 1.60mm)
- Height - Seated (Max):0.026" (0.65mm)
- Number of Terminations:2
- Failure Rate:-
Related Products
RES SMD 93.1 OHM 0.5% 1/16W 0402
RT0402DRD0793R1L Datasheet- 1: $0.27000
- 10000: $0.03059
- 30000: $0.03017
RES SMD 71.5 OHM 0.5% 1/16W 0402
RT0402DRD0771R5L Datasheet- 1: $0.27000
- 10000: $0.03059
- 30000: $0.03017
RES SMD 1.78KOHM 0.5% 1/16W 0402
RT0402DRD071K78L Datasheet- 1: $0.27000
- 10000: $0.03059
- 30000: $0.03017
RES SMD 73.2 OHM 0.5% 1/16W 0402
RT0402DRD0773R2L Datasheet- 1: $0.27000
- 10000: $0.03059
- 30000: $0.03017
RES SMD 39.2KOHM 0.5% 1/16W 0402
RT0402DRD0739K2L Datasheet- 1: $0.27000
- 10000: $0.03059
- 30000: $0.03017
RES SMD 1.54KOHM 0.5% 1/16W 0402
RT0402DRD071K54L Datasheet- 1: $0.27000
- 10000: $0.03059
- 30000: $0.03017
RES SMD 115 OHM 0.5% 1/16W 0402
RT0402DRD07115RL Datasheet- 1: $0.27000
- 10000: $0.03059
- 30000: $0.03017

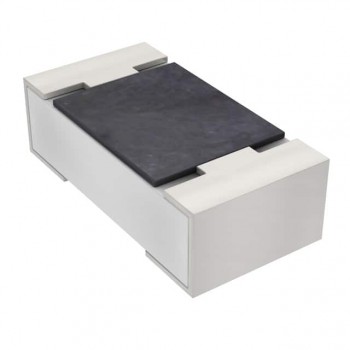

RES SMD 44.2KOHM 0.5% 1/16W 0402
