PT1206FR-070R249L
Yageo
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES 0.249 OHM 1% 1/4W 1206
- CategoryChip Resistor - Surface Mount
- Datasheet PT1206FR-070R249L Datasheet
-
ECAD Model
- Share
In Stock: 1,134
Can ship immediately
Pricing:
- 1$0.38
- 5,000$0.04739
- 10,000$0.04523
- 25,000$0.04333
- 50,000$0.0424
- 125,000$0.04157
Quote It
Technical Details
- Series:PT
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:249 mOhms
- Tolerance:±1%
- Power (Watts):0.25W, 1/4W
- Composition:Thick Film
- Features:Automotive AEC-Q200, Current Sense, Moisture Resistant
- Temperature Coefficient:±75ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:1206 (3216 Metric)
- Supplier Device Package:1206
- Ratings:AEC-Q200
- Size / Dimension:0.122" L x 0.063" W (3.10mm x 1.60mm)
- Height - Seated (Max):0.026" (0.65mm)
- Number of Terminations:2
- Failure Rate:-
Related Products
RES SMD 182 OHM 0.1% 1/16W 0402
RT0402BRD07182RL Datasheet- 1: $0.38000
- 10000: $0.04275
- 30000: $0.04217
RES SMD 5.23KOHM 0.1% 1/16W 0402
RT0402BRD075K23L Datasheet- 1: $0.38000
- 10000: $0.04275
- 30000: $0.04217
RES SMD 140K OHM 0.1% 1/10W 0603
RT0603BRE07140KL Datasheet- 1: $0.38000
- 5000: $0.04770
- 10000: $0.04623

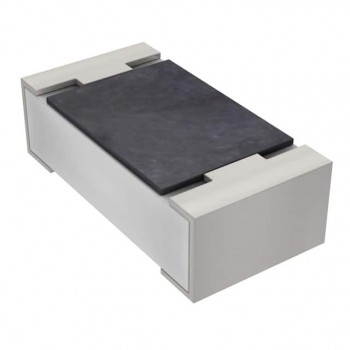

RES SMD 39.2KOHM 0.1% 1/10W 0603
