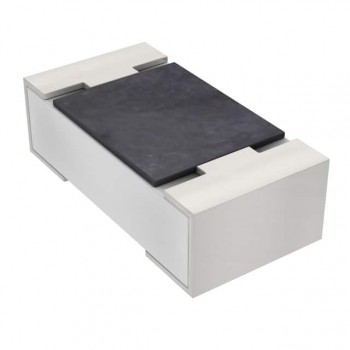

RT0603BRD07806RL
Yageo
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 806 OHM 0.1% 1/10W 0603
- CategoryChip Resistor - Surface Mount
- Datasheet RT0603BRD07806RL Datasheet
-
ECAD Model
- Share
In Stock: 3,961
Can ship immediately
Pricing:
- 1$0.32
- 5,000$0.0393
- 10,000$0.03668
- 25,000$0.03618
Quote It
Technical Details
- Series:RT
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:806 Ohms
- Tolerance:±0.1%
- Power (Watts):0.1W, 1/10W
- Composition:Thin Film
- Features:-
- Temperature Coefficient:±25ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:0603 (1608 Metric)
- Supplier Device Package:0603
- Ratings:-
- Size / Dimension:0.063" L x 0.031" W (1.60mm x 0.80mm)
- Height - Seated (Max):0.022" (0.55mm)
- Number of Terminations:2
- Failure Rate:-
