RC0805FR-074R22L
Yageo
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionRES SMD 4.22 OHM 1% 1/8W 0805
- CategoryChip Resistor - Surface Mount
- Datasheet RC0805FR-074R22L Datasheet
-
ECAD Model
- Share
In Stock: 174
Can ship immediately
Pricing:
- 1$0.1
- 5,000$0.00996
- 10,000$0.00865
- 25,000$0.0076
- 50,000$0.00697
- 125,000$0.00683
Quote It
Technical Details
- Series:RC_L
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Resistance:4.22 Ohms
- Tolerance:±1%
- Power (Watts):0.125W, 1/8W
- Composition:Thick Film
- Features:Moisture Resistant
- Temperature Coefficient:±200ppm/°C
- Operating Temperature:-55°C ~ 155°C
- Package / Case:0805 (2012 Metric)
- Supplier Device Package:0805
- Ratings:-
- Size / Dimension:0.079" L x 0.049" W (2.00mm x 1.25mm)
- Height - Seated (Max):0.024" (0.60mm)
- Number of Terminations:2
- Failure Rate:-
Related Products
RES SMD 120K OHM 0.5% 1/10W 0603
RT0603DRE07120KL Datasheet- 1: $0.10000
- 5000: $0.01257
- 10000: $0.01127
RES SMD 14.3KOHM 0.5% 1/10W 0603
RT0603DRE0714K3L Datasheet- 1: $0.10000
- 5000: $0.01257
- 10000: $0.01127
RES SMD 22.1 OHM 0.5% 1/10W 0603
RT0603DRE0722R1L Datasheet- 1: $0.10000
- 5000: $0.01257
- 10000: $0.01127

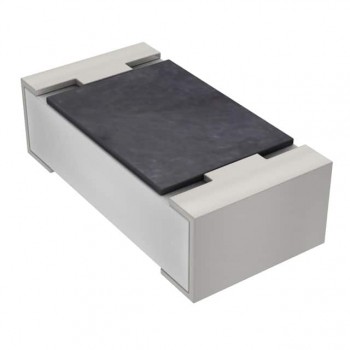

RES SMD 5.11KOHM 0.5% 1/10W 0603
