8P1P00317BGL421
NorComp
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG MALE 3P GOLD SLDR CUP
- CategoryCircular Connectors
- Datasheet 8P1P00317BGL421 Datasheet
-
ECAD Model
- Share
In Stock: 216
Can ship immediately
Pricing:
- 1$15.71
- 18$14.28
- 36$13.92306
- 54$12.85204
- 108$12.13796
- 252$11.06698
- 504$10.353
- 1,008$9.4962
Quote It
Technical Details
- Series:QUIK-LOQ™ 8P1P
- Package:Tray
- Part Status:Active
- Connector Type:Plug, Male Pins
- Number of Positions:3
- Shell Size - Insert:-
- Shell Size, MIL:-
- Mounting Type:Free Hanging (In-Line)
- Mounting Feature:-
- Termination:Solder Cup
- Fastening Type:Push-Pull
- Orientation:Keyed
- Shell Material:Polyacrylonitrile Butadiene Styrene (ABS), Polycarbonate (PC)
- Shell Finish:-
- Contact Finish - Mating:Gold
- Color:Gray
- Ingress Protection:IP50 - Dust Protected
- Material Flammability Rating:-
- Features:Backshell, Strain Relief
- Shielding:Unshielded
- Current Rating (Amps):10A
- Voltage Rating:500V
- Cable Opening:0.087" ~ 0.157" (2.20mm ~ 3.99mm)
- Operating Temperature:-20°C ~ 120°C
Related Products

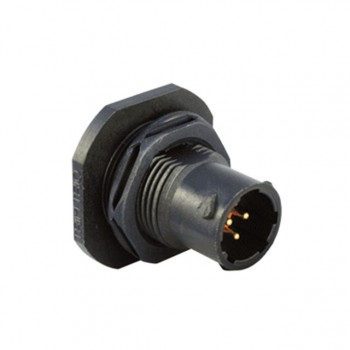

CONN RCPT MALE 3P GOLD SLDR CUP
