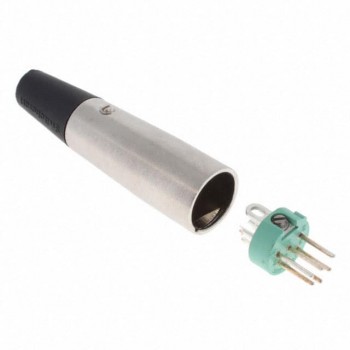

EN3C13M26SX

Technical Details

• Series:EN3®
• Package:Bulk
• Part Status:Active
• Connector Type:Plug, Male Pins
• Number of Positions:13
• Shell Size - Insert:-
• Shell Size, MIL:-
• Mounting Type:Free Hanging (In-Line)
• Mounting Feature:-
• Termination:Solder Cup
• Fastening Type:Bayonet Lock
• Orientation:Keyed

• Shell Material:Thermoplastic
• Shell Finish:-
• Contact Finish - Mating:Gold
• Color:Black
• Ingress Protection:IP66/IP68 - Dust Tight, Water Resistant, Waterproof
• Material Flammability Rating:UL94 V-0
• Features:Backshell, Cable Clamp, Coupling Nut
• Shielding:Unshielded
• Current Rating (Amps):3A
• Voltage Rating:250VAC/DC
• Cable Opening:0.160" ~ 0.265" (4.06mm ~ 6.73mm)
• Operating Temperature:-40°C ~ 65°C
