D38999/26WJ20SA-LC
PEI-Genesis
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionAE3 30C 10#20, 13#16, 4#12 COAX,
- CategoryCircular Connectors - Housings
- Datasheet D38999/26WJ20SA-LC Datasheet
-
ECAD Model
- Share
In Stock: 139
Can ship immediately
Pricing:
- 1$68.43
- 10$56.2219
- 25$51.21256
- 50$46.76856
- 100$45.20955
- 250$42.71516
Quote It
Technical Details
- Series:Military, MIL-DTL-38999 Series III, DTS
- Package:Box
- Part Status:Active
- Connector Type:Plug Housing
- Type:For Female Sockets
- Number of Positions:30 (23 + 4 Coax + 3 Twinax)
- Shell Size - Insert:25-20
- Shell Size, MIL:J
- Contact Type:Crimp
- Contact Size:16 (13), 20 (10), 8 Twinax (3), 12 Coax (4)
- Mounting Type:Free Hanging (In-Line)
- Mounting Feature:-
- Fastening Type:Threaded
- Orientation:A
- Shell Material:Aluminum Alloy
- Shell Finish:Chromate over Cadmium
- Housing Color:Olive Drab
- Ingress Protection:Environment Resistant
- Material Flammability Rating:-
- Features:Coupling Nut
- Shielding:Shielded
Related Products

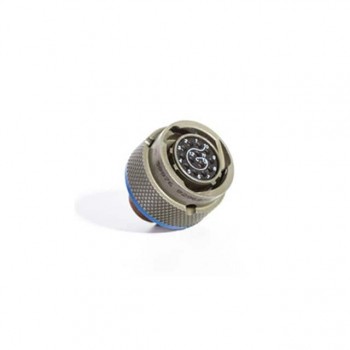

CONN PLG HSG FMALE 21POS INLINE
- 1: $63.56000
CONN PLG HSG FMALE 21POS INLINE
- 1: $68.45000

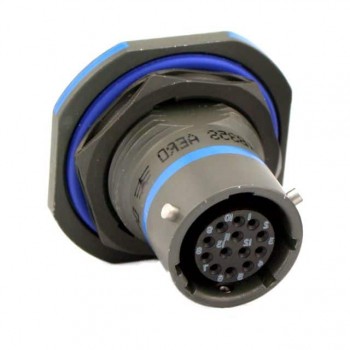

CONN RCPT HSG MALE 46POS PNL MT
