D38999/26WJ11PA-LC
PEI-Genesis
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionAE3 11C 2#20, 9#10 PIN PLUG
- CategoryCircular Connectors - Housings
- Datasheet D38999/26WJ11PA-LC Datasheet
-
ECAD Model
- Share
In Stock: 190
Can ship immediately
Pricing:
- 1$69.46
- 5$65.14456
- 10$56.14601
- 25$52.90689
- 50$50.02778
- 100$48.22815
Quote It
Technical Details
- Series:Military, MIL-DTL-38999 Series III, Tri-Start™ TV
- Package:Box
- Part Status:Active
- Connector Type:Plug Housing
- Type:For Male Pins
- Number of Positions:11 (2 + 9 Power)
- Shell Size - Insert:25-11
- Shell Size, MIL:J
- Contact Type:Crimp
- Contact Size:20 (2), 10 Power (9)
- Mounting Type:Free Hanging (In-Line)
- Mounting Feature:-
- Fastening Type:Threaded
- Orientation:A
- Shell Material:Aluminum
- Shell Finish:Cadmium
- Housing Color:Olive Drab
- Ingress Protection:Environment Resistant
- Material Flammability Rating:-
- Features:Coupling Nut, Self Locking
- Shielding:Shielded
Related Products
CONN PLG HSG MALE 11POS INLINE
- 1: $69.46000
CONN PLG HSG MALE 21POS INLINE
- 1: $56.63000
CONN PLG HSG MALE 21POS INLINE
- 1: $70.05000
CONN PLG HSG MALE 41POS INLINE
- 1: $70.09000
CONN PLG HSG MALE 41POS INLINE
- 1: $70.09000

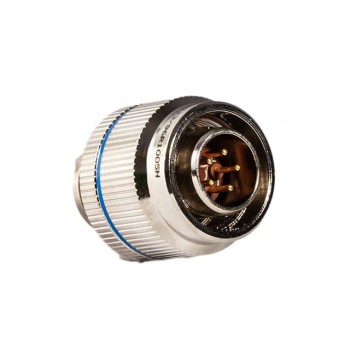

AE8 15C 15#20 SKT RECP
- 1: $70.35000
CONN RCPT HSG FMALE 15POS INLINE
- 1: $70.35000
CONN RCPT HSG FMALE 12POS INLINE
- 1: $70.38000
AE8 12C 9#20, 3#16 SKT RECP
- 1: $70.38000

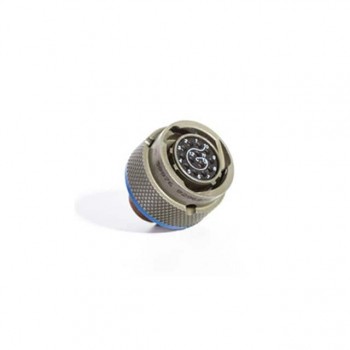

CONN PLG HSG MALE 55POS INLINE
