- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG HSNG MALE 47POS INLINE
- CategoryCircular Connectors - Housings
- Datasheet HDP26-24-47PE-L017 Datasheet
-
ECAD Model
- Share
In Stock: 813
Can ship immediately
Pricing:
- 1$18.77
- 10$17.43237
- 25$15.64411
- 50$15.19704
- 100$13.40915
- 250$12.51521
- 500$12.24703
Quote It
Technical Details
- Series:HDP20
- Package:Bulk
- Part Status:Active
- Connector Type:Plug Housing
- Type:For Male Pins
- Number of Positions:47
- Shell Size - Insert:24-47
- Shell Size, MIL:-
- Contact Type:Crimp
- Contact Size:16 (5), 20 (42)
- Mounting Type:Free Hanging (In-Line)
- Mounting Feature:-
- Fastening Type:Bayonet Lock
- Orientation:Keyed
- Shell Material:Polyamide (PA66), Nylon 6/6, Glass Filled
- Shell Finish:-
- Housing Color:Black, Blue
- Ingress Protection:IP68 - Dust Tight, Waterproof
- Material Flammability Rating:UL94 V-1
- Features:Coupling Nut, Ring Adapter
- Shielding:Unshielded
Related Products
CONN PLUG HSNG MALE 31POS INLINE
HDP26-24-31PE-L017 Datasheet- 1: $18.92000
- 10: $17.56517
- 25: $15.76380

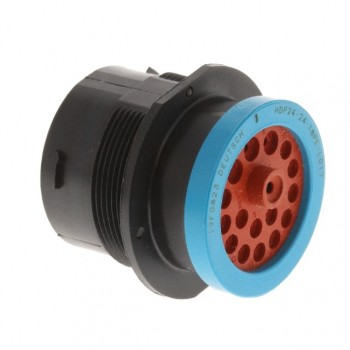

CONN RCPT HSG MALE 18POS PNL MNT
