- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG HSG MALE 21POS INLINE
- CategoryCircular Connectors - Housings
- Datasheet HDP26-24-21PE-L017 Datasheet
-
ECAD Model
- Share
In Stock: 241
Can ship immediately
Pricing:
- 1$18.87
- 10$17.02985
- 25$16.31612
- 50$15.29636
- 100$14.78648
- 250$13.9707
- 500$13.56278
Quote It
Technical Details
- Series:HDP20
- Package:Bulk
- Part Status:Active
- Connector Type:Plug Housing
- Type:For Male Pins
- Number of Positions:21
- Shell Size - Insert:24-21
- Shell Size, MIL:-
- Contact Type:Crimp
- Contact Size:12 (4), 16 (17)
- Mounting Type:Free Hanging (In-Line)
- Mounting Feature:-
- Fastening Type:Bayonet Lock
- Orientation:Keyed
- Shell Material:Polyamide (PA66), Nylon 6/6, Glass Filled
- Shell Finish:-
- Housing Color:Black, Blue
- Ingress Protection:IP68 - Dust Tight, Waterproof
- Material Flammability Rating:UL94 V-1
- Features:Coupling Nut, Ring Adapter
- Shielding:Unshielded
Related Products
CONN PLUG HSG FMALE 21POS INLINE
- 1: $19.09000
- 10: $17.72643
- 25: $15.90886
CONN PLUG HSG FMALE 29POS INLINE
HDP26-24-29SE-L015 Datasheet- 1: $19.11000
- 10: $17.74641
- 25: $15.92592
CONN RCPT HSNG MALE 16POS PNL MT
HDP24-24-16PE-L017 Datasheet- 1: $19.82000
- 10: $18.40805
- 25: $16.51942
CONN RCPT HSNG MALE 19POS PNL MT
HDP24-24-19PN-L017 Datasheet- 1: $19.87000
- 10: $18.06883
- 25: $17.61711
CONN RCPT HSG MALE 21POS PNL MNT
HDP24-24-21PE-L017 Datasheet- 1: $19.89000
- 10: $18.08404
- 25: $17.63206

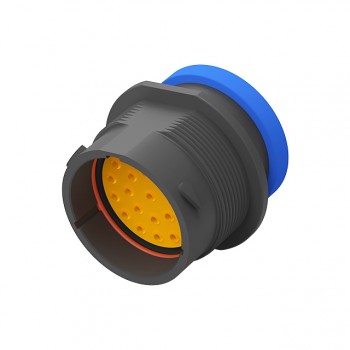

CONN RCPT HSNG MALE 23POS PNL MT
