- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLUG HSNG MALE 21POS INLINE
- CategoryCircular Connectors - Housings
- Datasheet HDP26-24-21PN Datasheet
-
ECAD Model
- Share
In Stock: 163
Can ship immediately
Pricing:
- 1$19
- 10$17.63872
- 25$15.82927
- 50$15.37691
- 100$13.56786
- 250$12.66334
- 500$12.39198
Quote It
Technical Details
- Series:HDP20
- Package:Bulk
- Part Status:Active
- Connector Type:Plug Housing
- Type:For Male Pins
- Number of Positions:21
- Shell Size - Insert:24-21
- Shell Size, MIL:-
- Contact Type:Crimp
- Contact Size:12 (4), 16 (17)
- Mounting Type:Free Hanging (In-Line)
- Mounting Feature:-
- Fastening Type:Bayonet Lock
- Orientation:Keyed
- Shell Material:Polyamide (PA66), Nylon 6/6, Glass Filled
- Shell Finish:-
- Housing Color:Black
- Ingress Protection:IP68 - Dust Tight, Waterproof
- Material Flammability Rating:UL94 V-1
- Features:Coupling Nut
- Shielding:Unshielded
Related Products
CONN RCPT HSG MALE 33POS PNL MNT
- 1: $19.65000
- 10: $17.73500
- 25: $16.99200
CONN RCPT HSG MALE 29POS PNL MNT

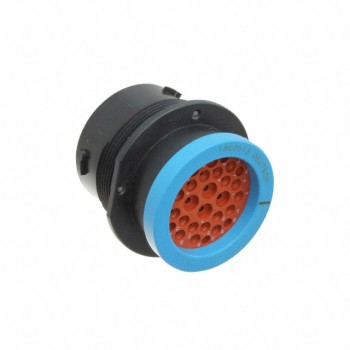

HDP24-24-29PE-L017 Datasheet- 1: $19.91000
