796274-1
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN PLG HSG FMALE 16POS INLINE
- CategoryCircular Connectors - Housings
- Datasheet 796274-1 Datasheet
-
ECAD Model
- Share
In Stock: 147
Can ship immediately
Pricing:
- 1$22.18
- 10$20.01911
- 25$19.17982
- 50$17.98092
- 100$17.38169
- 250$16.42265
- 500$15.94316
Quote It
Technical Details
- Series:CPC Series 1
- Package:Bulk
- Part Status:Active
- Connector Type:Plug Housing
- Type:For Female Sockets
- Number of Positions:16
- Shell Size - Insert:17-16
- Shell Size, MIL:-
- Contact Type:Crimp
- Contact Size:16
- Mounting Type:Free Hanging (In-Line)
- Mounting Feature:-
- Fastening Type:Threaded
- Orientation:Keyed
- Shell Material:Polyamide (PA), Nylon
- Shell Finish:-
- Housing Color:Black
- Ingress Protection:IP67 - Dust Tight, Waterproof
- Material Flammability Rating:UL94 V-0
- Features:Backshell, Coupling Nut
- Shielding:Unshielded
Related Products

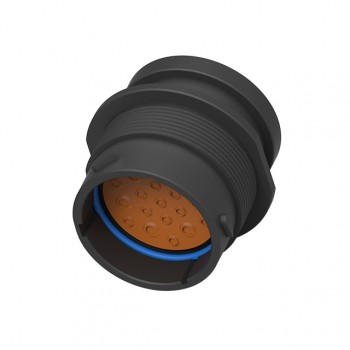

CONN RCPT HSNG MALE 19POS PNL MT
