CHB75W-48S24

Cincon
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionDC DC CONVERTER 24V 75W
  • CategoryDC DC Converters
  • ECAD Model
  • Share
In Stock: 227

Can ship immediately

Pricing:
  • 1$81.81
  • 5$80.1738
  • 10$77.76911
  • 25$74.65807
  • 50$70.92492
  • 100$66.66967

Quote It

Technical Details

  • Series:CHB75W (75W)
  • Package:Tray
  • Part Status:Active
  • Type:Isolated Module
  • Number of Outputs:1
  • Voltage - Input (Min):18V
  • Voltage - Input (Max):75V
  • Voltage - Output 1:24V
  • Voltage - Output 2:-
  • Voltage - Output 3:-
  • Voltage - Output 4:-
  • Current - Output (Max):3.12A
  • Power (Watts):75 W



  • Voltage - Isolation:1.5 kV
  • Applications:ITE (Commercial)
  • Features:Remote On/Off, OCP, OTP, OVP, SCP, UVLO
  • Operating Temperature:-40°C ~ 100°C (With Derating)
  • Efficiency:85%
  • Mounting Type:Through Hole
  • Package / Case:Half Brick
  • Size / Dimension:2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
  • Supplier Device Package:Half Brick
  • Control Features:Enable, Active High
  • Approval Agency:-
  • Standard Number:-

Related Products


CHB75W-24S05

DC DC CONVERTER 5V 75W

  • 1: $81.81000
  • 5: $80.17380
  • 10: $77.76911

CHB75W-24S28

DC DC CONVERTER 28V 75W

  • 1: $81.81000
  • 5: $80.17380
  • 10: $77.76911

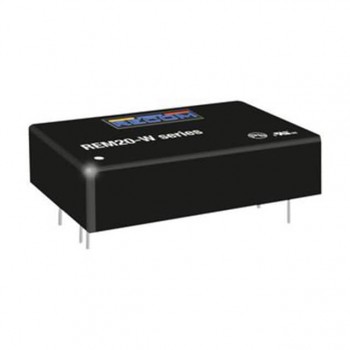

REM20-4815DW

DC DC CONVERTER +/-15V 20W

  • 1: $82.25000
  • 5: $81.60833
  • 10: $80.96458

TEN 30-2413WI

DC DC CONVERTER 15V 30W

  • 1: $82.30000
  • 10: $72.11900
  • 25: $69.82960

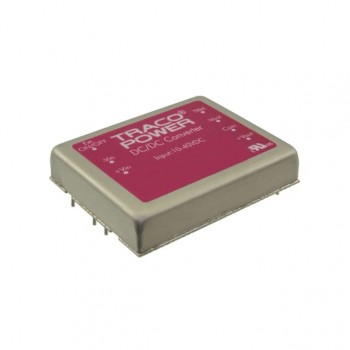

TEN 30-4813WI

DC DC CONVERTER 15V 30W

  • 1: $82.30000
  • 10: $72.11900
  • 25: $69.82960

TEN 30-2412WI

DC DC CONVERTER 12V 30W

  • 1: $82.30000
  • 10: $72.11900
  • 25: $69.82960

TEN 30-4812WI

DC DC CONVERTER 12V 30W

  • 1: $82.30000
  • 10: $72.11900
  • 25: $69.82960

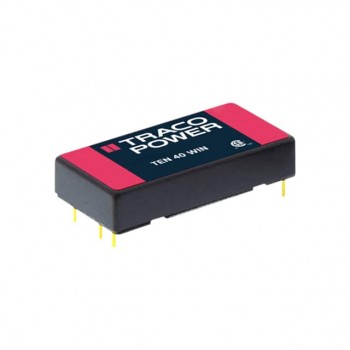

TEN 40-4812WIN
