PDSE1-S5-D5-M

CUI Inc.
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionDC DC CONVERTER +/-5V 1W
  • CategoryDC DC Converters
  • ECAD Model
  • Share
In Stock: 244

Can ship immediately

Pricing:
  • 1$3.82

Quote It

Technical Details

  • Series:PDSE1-M (1W)
  • Package:Tube
  • Part Status:Active
  • Type:Isolated Module
  • Number of Outputs:2
  • Voltage - Input (Min):4.5V
  • Voltage - Input (Max):5.5V
  • Voltage - Output 1:5V
  • Voltage - Output 2:-5V
  • Voltage - Output 3:-
  • Voltage - Output 4:-
  • Current - Output (Max):100mA, 100mA
  • Power (Watts):1 W



  • Voltage - Isolation:1.5 kV
  • Applications:ITE (Commercial)
  • Features:SCP
  • Operating Temperature:-40°C ~ 105°C (With Derating)
  • Efficiency:82%
  • Mounting Type:Surface Mount
  • Package / Case:10-SMD Module, 6 Leads
  • Size / Dimension:0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm)
  • Supplier Device Package:-
  • Control Features:-
  • Approval Agency:CB Scheme, EN, IEC, UL
  • Standard Number:55024; 55032 Class A; 62368-1

Related Products


PDSE1-S5-S9-M

DC DC CONVERTER 9V 1W

  • 1: $3.82000

PDSE1-S5-S12-M

DC DC CONVERTER 12V 1W

  • 1: $3.82000

PDSE1-S5-S15-M

DC DC CONVERTER 15V 1W

  • 1: $3.82000

F0509XT-1WR3

DC DC CONVERTER 9V 999MW

  • 1: $3.83000

F0503XT-1WR3

DC DC CONVERTER 3.3V 1W

  • 1: $3.83000

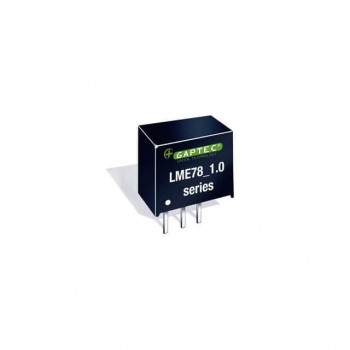

LME78_05-1.0

DC-DC POL

  • 1: $4.02000

2S4E_0505S1U

DC-DC

  • 1: $4.08000

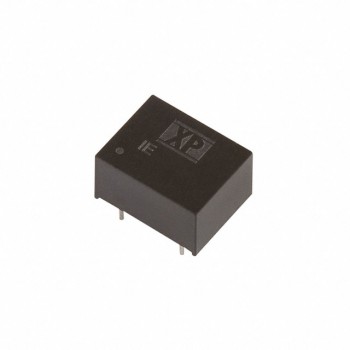

IE0515D
