PDQE20-Q24-D12-D

CUI Inc.
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionDC DC CONVERTER +/-12V 20W
  • CategoryDC DC Converters
  • ECAD Model
  • Share
In Stock: 220

Can ship immediately

Pricing:
  • 1$24.16

Quote It

Technical Details

  • Series:PDQE20-D (20W)
  • Package:Tube
  • Part Status:Active
  • Type:Isolated Module
  • Number of Outputs:2
  • Voltage - Input (Min):9V
  • Voltage - Input (Max):36V
  • Voltage - Output 1:12V
  • Voltage - Output 2:-12V
  • Voltage - Output 3:-
  • Voltage - Output 4:-
  • Current - Output (Max):833mA, 833mA
  • Power (Watts):20 W



  • Voltage - Isolation:1.5 kV
  • Applications:ITE (Commercial)
  • Features:Remote On/Off, OCP, OVP, SCP
  • Operating Temperature:-40°C ~ 105°C (With Derating)
  • Efficiency:90%
  • Mounting Type:Through Hole
  • Package / Case:6-DIP Module
  • Size / Dimension:1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm)
  • Supplier Device Package:-
  • Control Features:-
  • Approval Agency:EN
  • Standard Number:55024; 55032 Class A

Related Products


PDQE20-Q48-D24-D

DC DC CONVERTER +/-24V 20W

  • 1: $24.16000

PDQE20-Q24-D5-D

DC DC CONVERTER +/-5V 20W

  • 1: $24.16000

PDQE20-Q24-D15-D

DC DC CONVERTER +/-15V 20W

  • 1: $24.16000

PT5827C

SWITCHING REGLTR, VOLTAGE-MODE

  • 1: $24.19000

PT5804C

SWITCHING REGLTR, VOLTAGE-MODE

  • 1: $24.19000

PT5803C

SWITCHING REGLTR, VOLTAGE-MODE

  • 1: $24.19000

TEL 8-4815WI

DC DC CONVERTER 24V 8W

TEL 8-4815WI Datasheet
  • 1: $24.20000
  • 10: $22.36800

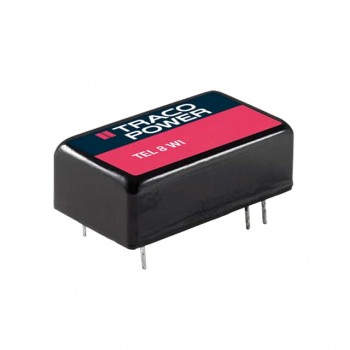

TEL 8-2415WI

DC DC CONVERTER 24V 8W

TEL 8-2415WI Datasheet
  • 1: $24.20000
  • 10: $22.36800

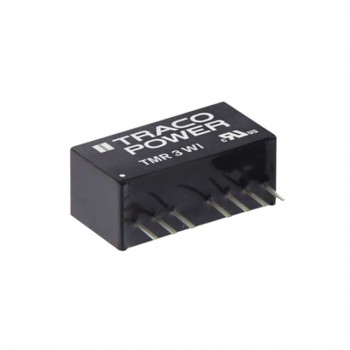

TMR 3-4821WI
