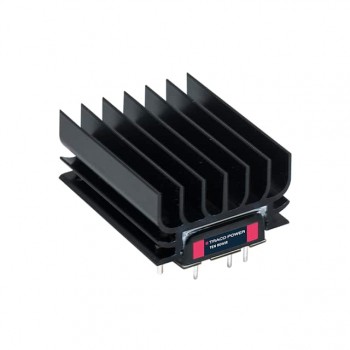

TEN 60-2423WIR

Technical Details

• Series:TEN 60WIR (60W)
• Package:Box
• Part Status:Active
• Type:Isolated Module
• Number of Outputs:2
• Voltage - Input (Min):9V
• Voltage - Input (Max):36V
• Voltage - Output 1:15V
• Voltage - Output 2:-15V
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):2A, 2A
• Power (Watts):60 W

• Voltage - Isolation:3 kV
• Applications:ITE (Commercial), Railway
• Features:Adjustable Output, Remote On/Off
• Operating Temperature:-40°C ~ 85°C (With Derating)
• Efficiency:91%
• Mounting Type:Through Hole
• Package / Case:8-DIP Module
• Size / Dimension:2.00" L x 1.60" W x 1.00" H (50.8mm x 40.7mm x 25.4mm)
• Supplier Device Package:-
• Control Features:-
• Approval Agency:-
• Standard Number:-
