RH-2415D
RECOM Power
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDC DC CONVERTER +/-15V 1W
- CategoryDC DC Converters
- Datasheet RH-2415D Datasheet
-
ECAD Model
- Share
In Stock: 177
Can ship immediately
Pricing:
- 1$8.36
- 5$8.23872
- 10$8.11851
- 25$7.87962
- 50$7.64095
- 100$7.40217
- 250$7.16339
- 500$6.68583
Quote It
Technical Details
- Series:ECONOLINE RH (1W)
- Package:Tube
- Part Status:Active
- Type:Isolated Module
- Number of Outputs:2
- Voltage - Input (Min):21.6V
- Voltage - Input (Max):26.4V
- Voltage - Output 1:15V
- Voltage - Output 2:-15V
- Voltage - Output 3:-
- Voltage - Output 4:-
- Current - Output (Max):33mA, 33mA
- Power (Watts):1 W
- Voltage - Isolation:3 kV
- Applications:ITE (Commercial), Medical
- Features:-
- Operating Temperature:-40°C ~ 90°C
- Efficiency:84%
- Mounting Type:Through Hole
- Package / Case:7-SIP Module, 5 Leads
- Size / Dimension:0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm)
- Supplier Device Package:-
- Control Features:-
- Approval Agency:-
- Standard Number:-
Related Products

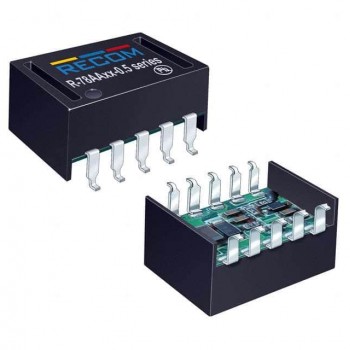

DC DC CONVERTER 0.9-5.5V
