• Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionDC DC CONVERTER 0.8-3.6V 21W
  • CategoryDC DC Converters
  • ECAD Model
  • Share
In Stock: 262

Can ship immediately

Pricing:
  • 1$10.97
  • 10$9.21984
  • 100$7.55072
  • 500$6.27904
  • 1,000$6.00879

Quote It

Technical Details

  • Series:Austin MicroLynx™ II
  • Package:Bulk
  • Part Status:Active
  • Type:Non-Isolated PoL Module
  • Number of Outputs:1
  • Voltage - Input (Min):2.4V
  • Voltage - Input (Max):5.5V
  • Voltage - Output 1:0.8 ~ 3.6V
  • Voltage - Output 2:-
  • Voltage - Output 3:-
  • Voltage - Output 4:-
  • Current - Output (Max):6A
  • Power (Watts):21 W



  • Voltage - Isolation:-
  • Applications:ITE (Commercial)
  • Features:Remote On/Off, OCP, OTP, UVLO
  • Operating Temperature:-40°C ~ 85°C
  • Efficiency:96%
  • Mounting Type:Through Hole
  • Package / Case:6-SIP Module
  • Size / Dimension:1.00" L x 0.26" W x 0.50" H (25.4mm x 6.7mm x 12.7mm)
  • Supplier Device Package:-
  • Control Features:Enable, Active Low
  • Approval Agency:-
  • Standard Number:-

Related Products


NTV1212MC

DC DC CONVERTER +/-12V 1W

NTV1212MC Datasheet
  • 1: $10.97000
  • 5: $10.92000
  • 10: $10.84000

ITW2415S

DC DC CONVERTER +/-15V 1W

ITW2415S Datasheet
  • 1: $11.00000
  • 5: $10.67000
  • 10: $10.34000

NCS3S4815SC

DC DC CONVERTER 15V 3W

NCS3S4815SC Datasheet
  • 1: $11.00000
  • 5: $10.95000
  • 10: $10.87000

PTH03000WAZ

DC DC CONVERTER 0.9-2.5V

  • 1: $11.19000
  • 10: $11.02365
  • 49: $10.85386

CC3-0512DR-E

DC DC CNVRTR +/-12V TO +/-15V 3W

CC3-0512DR-E Datasheet
  • 1: $11.21000
  • 10: $10.81000

CC3-4805SF-E

DC DC CONVERTER 5V 3W

CC3-4805SF-E Datasheet
  • 1: $11.21000
  • 10: $10.81000

RP-0515S

DC DC CONVERTER 15V 1W

RP-0515S Datasheet
  • 1: $11.25000
  • 5: $11.16315
  • 10: $11.07731

R-78T3.3-1.0/AC-TRAY

DC DC CONVERTER 3.3V 3W

R-78T3.3-1.0/AC-TRAY Datasheet
  • 1: $12.15000
  • 5: $12.05904
  • 10: $11.96591

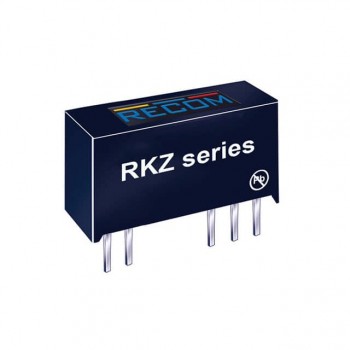

RKZ-2412D/HP

DC DC CONVERTER +/-12V 2W

RKZ-2412D/HP Datasheet
  • 1: $11.33000
  • 5: $11.24551
  • 10: $11.15994

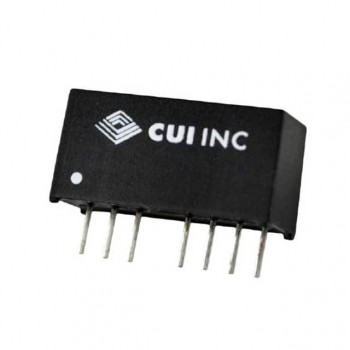

PDQ2-D5-S12-S
