EC1SC05

Cincon
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionDC DC CONVERTER +/-15V 20W
  • CategoryDC DC Converters
  • ECAD Model
  • Share
In Stock: 145

Can ship immediately

Pricing:
  • 1$48.06
  • 5$47.57961
  • 10$47.10349
  • 25$46.16151
  • 50$44.77672
  • 100$42.98563
  • 250$35.71551

Quote It

Technical Details

  • Series:EC1SC (20W)
  • Package:Tube
  • Part Status:Active
  • Type:Isolated Module
  • Number of Outputs:2
  • Voltage - Input (Min):9V
  • Voltage - Input (Max):36V
  • Voltage - Output 1:15V
  • Voltage - Output 2:-15V
  • Voltage - Output 3:-
  • Voltage - Output 4:-
  • Current - Output (Max):666mA, 666mA
  • Power (Watts):20 W



  • Voltage - Isolation:1.5 kV
  • Applications:ITE (Commercial)
  • Features:Remote On/Off, OCP, SCP
  • Operating Temperature:-25°C ~ 100°C (With Derating)
  • Efficiency:83%
  • Mounting Type:Through Hole
  • Package / Case:8-DIP Module, 7 Leads
  • Size / Dimension:2.00" L x 1.60" W x 0.45" H (50.8mm x 40.6mm x 11.4mm)
  • Supplier Device Package:-
  • Control Features:Enable, Active High
  • Approval Agency:-
  • Standard Number:-

Related Products


NPH15S2403EIC

DC DC CONVERTER 3.4V 15W

NPH15S2403EIC Datasheet
  • 1: $48.13000
  • 5: $47.88000
  • 10: $47.55000

THB 6-2411

DC DC CONVERTER 5V 5W

THB 6-2411 Datasheet
  • 1: $48.17000
  • 10: $47.41362
  • 25: $45.90833

JWK2548S12

DC DC CONVERTER 12V 25W

JWK2548S12 Datasheet
  • 1: $49.00000
  • 5: $47.53000
  • 10: $46.06000

RP08-11012SAW

DC DC CONVERTER 12V 8W

RP08-11012SAW Datasheet
  • 1: $49.03000
  • 7: $48.64302
  • 14: $48.25976

TON 15-2412

DC DC CONVERTER 12V 15W

TON 15-2412 Datasheet
  • 1: $49.20000
  • 10: $41.45400
  • 25: $40.13800

TEN 10-1211

DC DC CONVERTER 5V 10W

  • 1: $49.40000
  • 10: $42.50900
  • 25: $41.15960

TEN 10-1215

DC DC CONVERTER 24V 10W

  • 1: $49.40000
  • 10: $42.50900
  • 25: $41.15960

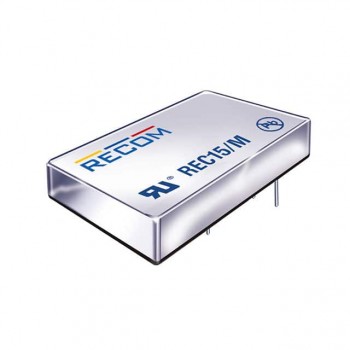

REC15-245.1SZ/H2/M

DC DC CONVERTER 5.1V 15W

REC15-245.1SZ/H2/M Datasheet
  • 1: $49.48000
  • 5: $49.09666
  • 10: $48.71124

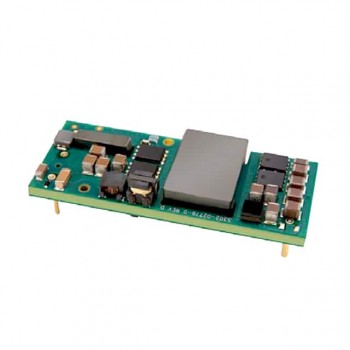

PAE-29/3-D48N-C

DC DC CONVERTER 29.8V 100W

PAE-29/3-D48N-C Datasheet
  • 1: $49.50000
  • 5: $49.10000
  • 10: $48.69000

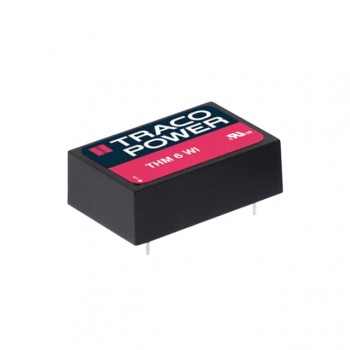

THM 6-4821WI
