SBTN01N-12

MEAN WELL
In Stock: 125

Can ship immediately

Pricing:
  • 1$3.59
  • 10$3.4826
  • 25$3.38037
  • 50$3.27774

Quote It

Technical Details

  • Series:SBTN01 (1W)
  • Package:Tube
  • Part Status:Active
  • Type:Isolated Module
  • Number of Outputs:1
  • Voltage - Input (Min):21.6V
  • Voltage - Input (Max):26.4V
  • Voltage - Output 1:12V
  • Voltage - Output 2:-
  • Voltage - Output 3:-
  • Voltage - Output 4:-
  • Current - Output (Max):84mA
  • Power (Watts):1 W



  • Voltage - Isolation:1.5 kV
  • Applications:ITE (Commercial)
  • Features:SCP
  • Operating Temperature:-40°C ~ 90°C (With Derating)
  • Efficiency:79%
  • Mounting Type:Surface Mount
  • Package / Case:8-SMD Module, 5 Leads
  • Size / Dimension:0.51" L x 0.43" W x 0.28" H (12.9mm x 10.9mm x 7.1mm)
  • Supplier Device Package:-
  • Control Features:-
  • Approval Agency:-
  • Standard Number:-

Related Products


SVR10S12

DC DC CONVERTER 12V

  • 1: $3.60000

IES0105S12

DC DC CONVERTER 12V 1W

  • 1: $3.60000

IFS0105S09

DC DC CONVERTER 9V 999MW

  • 1: $3.60000

IES0105S09

DC DC CONVERTER 9V 999MW

  • 1: $3.60000

EC1SA12N

DC DC CONVERTER 12V 1W

  • 1: $3.74000
  • 5: $3.70361
  • 10: $3.66520

PDM1-S15-S9-S

DC DC CONVERTER 9V 1W

PDM1-S15-S9-S Datasheet
  • 1: $3.87000
  • 5: $3.81200
  • 12: $3.75667

PDM1-S15-D5-S

DC DC CONVERTER +/-5V 1W

PDM1-S15-D5-S Datasheet
  • 1: $4.04000
  • 5: $3.98400
  • 12: $3.92667

PCN1-S24-S5-S

DC DC CONVERTER 5V 1W

PCN1-S24-S5-S Datasheet
  • 1: $4.27000
  • 5: $4.21000
  • 16: $4.14813

PCN1-S24-S12-S

DC DC CONVERTER 12V 1W

PCN1-S24-S12-S Datasheet
  • 1: $4.27000
  • 5: $4.21000
  • 16: $4.14813

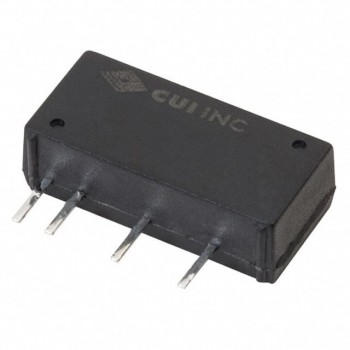

PCN1-S5-S5-S
